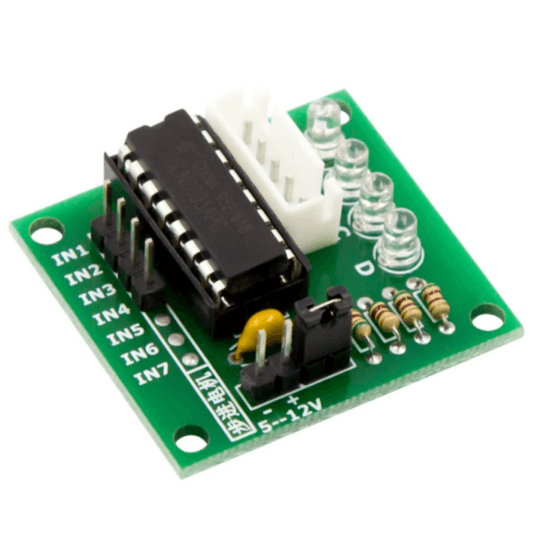

ULN2003 Stepper Motor Driver Module

This is the ULN2003 Driver Module Stepper Motor Driver Board for driving and controlling stepper motors. ULN2003 Stepper Motor Driver Board uses the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v). It’s easy to use Arduino or another development platform to drive the stepper motor by this diver board. The 5 Line 4 Phase can be driven by an ordinary ULN2003 chip that can also be connected to the phase 2 development board used for supporting the use of a direct plug and easy-to-use stepper motor used in the development board. A, B, C, D four-phase LED indicates the status of the stepper motor work. The ULN2003 stepper motor driver module is a widely used component in electronics and robotics projects, serving to control the motion of stepper motors with precision and efficiency. This module is based on the ULN2003 integrated circuit, which is designed to drive inductive loads such as stepper motors, relays, and solenoids. With its simple interface and versatile functionality, the ULN2003 stepper motor driver module finds applications in various fields, including 3D printing, CNC machines, robotic arms, camera sliders, and more. The ULN2003 chip, at the heart of the module, is a high-voltage, high-current Darlington transistor array. It consists of seven Darlington pairs, each capable of sourcing up to 500 mA of continuous current and withstanding voltages of up to 50 volts. These Darlington pairs provide the necessary amplification and switching capability required to drive the coils of a stepper motor effectively. Stepper motors are electromechanical devices that convert digital pulses into precise mechanical motion. Unlike traditional DC motors, stepper motors move in discrete steps, making them ideal for applications requiring accurate positioning or rotation control. The ULN2003 stepper motor driver module facilitates this precise control by converting digital signals from a microcontroller or other control circuitry into the appropriate current pulses needed to drive the stepper motor coils. The ULN2003 module typically interfaces with a microcontroller or Arduino board, receiving step and direction signals to control the stepper motor’s movement. By sending a sequence of pulses to the ULN2003 module, the microcontroller can command the stepper motor to rotate in either direction and move a specific number of steps. This capability enables precise positioning and movement control in various automated systems. One of the key advantages of using the ULN2003 stepper motor driver module is its simplicity of operation. The module requires minimal external components, making it easy to integrate into electronic projects. It typically features screw terminals or pin headers for connecting the stepper motor coils, power supply, and control signals, simplifying the wiring process. Moreover, the ULN2003 module offers built-in protection features that enhance the reliability and robustness of stepper motor control circuits. The Darlington transistor array provides high-voltage isolation between the control circuitry and the motor coils, helping prevent damage to sensitive components from voltage spikes or back EMF generated by the motor. Additionally, the ULN2003 chip includes internal diodes for clamping inductive loads, further safeguarding against transient voltage surges. In terms of performance, the ULN2003 stepper motor driver module offers sufficient current handling capabilities to drive a wide range of stepper motors commonly used in DIY and hobbyist projects. While it may not support extremely high torque or speed requirements found in industrial applications, it is well-suited for tasks that demand moderate precision and reliability. In summary, the ULN2003 stepper motor driver module provides a convenient and cost-effective solution for controlling stepper motors in various electronic and robotic applications. Its simple interface, built-in protection features, and compatibility with microcontrollers make it an ideal choice for hobbyists, students, and DIY enthusiasts looking to incorporate stepper motor control into their projects. Whether used in 3D printers, CNC machines, or robotic platforms, the ULN2003 module enables precise and reliable motion control, empowering creators to bring their ideas to life with ease.   Features : ULN2003A motor driver chip Chip all the pins already leads for easy connection to use 5-12V power supply 4-way signal indicator XH-5P socket can be connected directly 28BYJ-48 Model stepper motor Package Includes : 1 x ULN2003 Driver Module Stepper Motor Driver Board SKU: IK-238 Categories: All Products, Servo Motor/Controller Tags: 28BYJ-48, Motor Driver, Stepper Motor, Stepper Motor Driver, ULN2003 Loading...Barcode:
