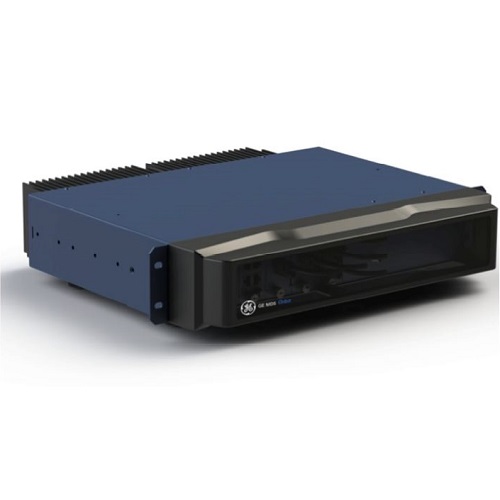

MDS LN Master Station 406.1-470 (Duplexer 5-10 MHz SP 330-512 MHz TX High) Redundant 125 VDC Primary 125 VDC Secondary

MDS LN Master Station 406.1-470 Simplex Redundant Protected 125 VDC Primary Power and 125 VDC Secondary Power with redundancy. Serial Master Station with serial and ethernet data ports. MPRL4ERD411S2G44FULNN is compatible with SD4 and 4710 radios with data rates up to 19.2 Kbps. Max range of 50 miles and sensitivity of -112. Temperature range of -22-140 degrees fahrenheit, power consumption of 5 A or 60 watts. Excellent performance in the face of interference or difficult signal paths. Network management software simplifies maintenance tasks, reduces network infrastructure management costs, and provides a non-intrusive means of maintenance and link monitoring. Redundancy options for protected 1 1 warm stanby configuration for reliable continuous use. Full duplex, half duplex and simplex modes. Specifications Radio Capability Point To Multipoint Radio Type 400 Mhz Serial Licensed Radio Housing Enclosed Radio Encryption None Radio UL Approval UL Approved Radio Data Protocol Serial RS232 Radio Data Protocol Ethernet Radio Temperature Range High 140F Radio Carrier Power 5 Watt Radio RF Connector N Female Radio Temperature Range Low -22F Radio Data Rate 19.2 Kbps Radio Sensitivity -112 Radio Serial Ports 2 Serial Ports Radio Ethernet Ports 1 Ethernet Port Radio Data Interface RJ45 Radio Redundancy Redundant 2 Radios Radio Voltage 125 VDC Radio Mounting Standard Mount Radio Battery Backup No Battery Backup Radio Frequency Range 406.1-470 Mhz Radio Frequency Band B Band 406.1-470 Mhz 2nd Radio Frequency Range 406.1-470 Mhz 2nd Radio Frequency Band B Band 406.1-470 Mhz Radio 2 Type 400 Mhz Serial Licensed Radio Antenna Ports 1 Antenna Port Manufacturer MDS 2nd Radio Voltage 125 VDC Line LN Master Station (Orbit) Component Radio Features The MDS™ Orbit Licensed Narrowband (LN) Series radios implement the advanced networking and security features of the MDS Orbit platform to bring new levels of performance and versatility to networks utilizing narrowband licensed spectrum in the 400 and 900 MHz frequency bands. In addition to the core feature suite derived from the Orbit platform, the LN Series radios implement high speed QAM modulation options for a 6 times speed improvement over other narrowband solutions operating in 6.25, 12.5 and 25 KHz channel sizes. The MDS Orbit LN Series radios are available in both the MCR (Multiservice-Connect Router) and ECR (Edge-Connect Router) models. Both the MCR and ECR share the same networking and security functionality with the MCR being a dual radio router while the ECR supports a single LN radio with optional WiFi in a more compact form factor. The MCR-LN and ECR-LN support IP/Ethernet and serial communication for data acquisition applications to remote PLC, control and metering devices. Users can simultaneously operate multiple host systems, remote device types and protocols to support SCADA and M2M applications on a common infrastructure. Be the first to review “MDS LN Master Station 406.1-470 (Duplexer 5-10 MHz SP 330-512 MHz TX High) Redundant 125 VDC Primary 125 VDC Secondary” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
