Sheet forming line Diper Design DEVANADORA D5-EH-V35

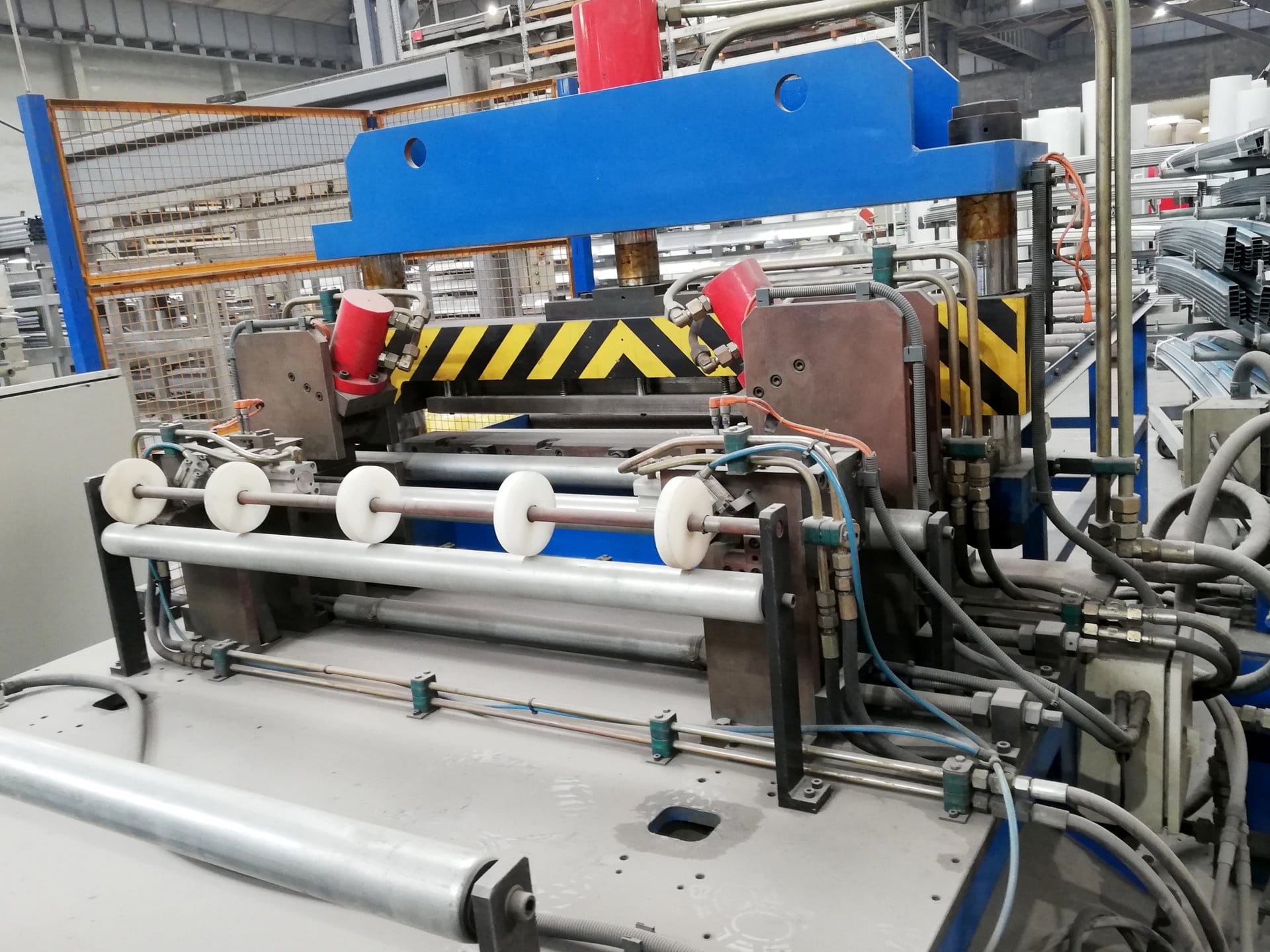

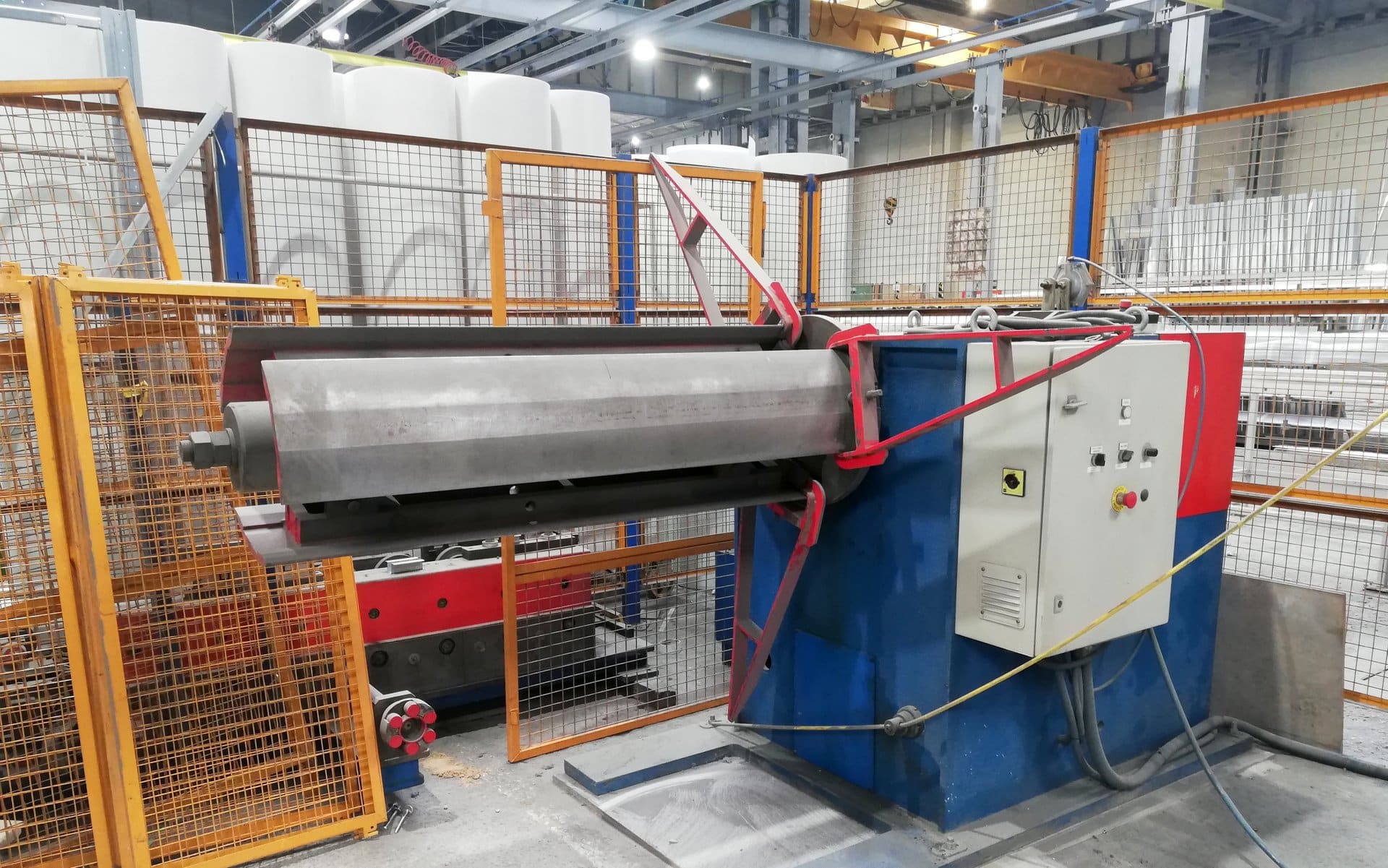

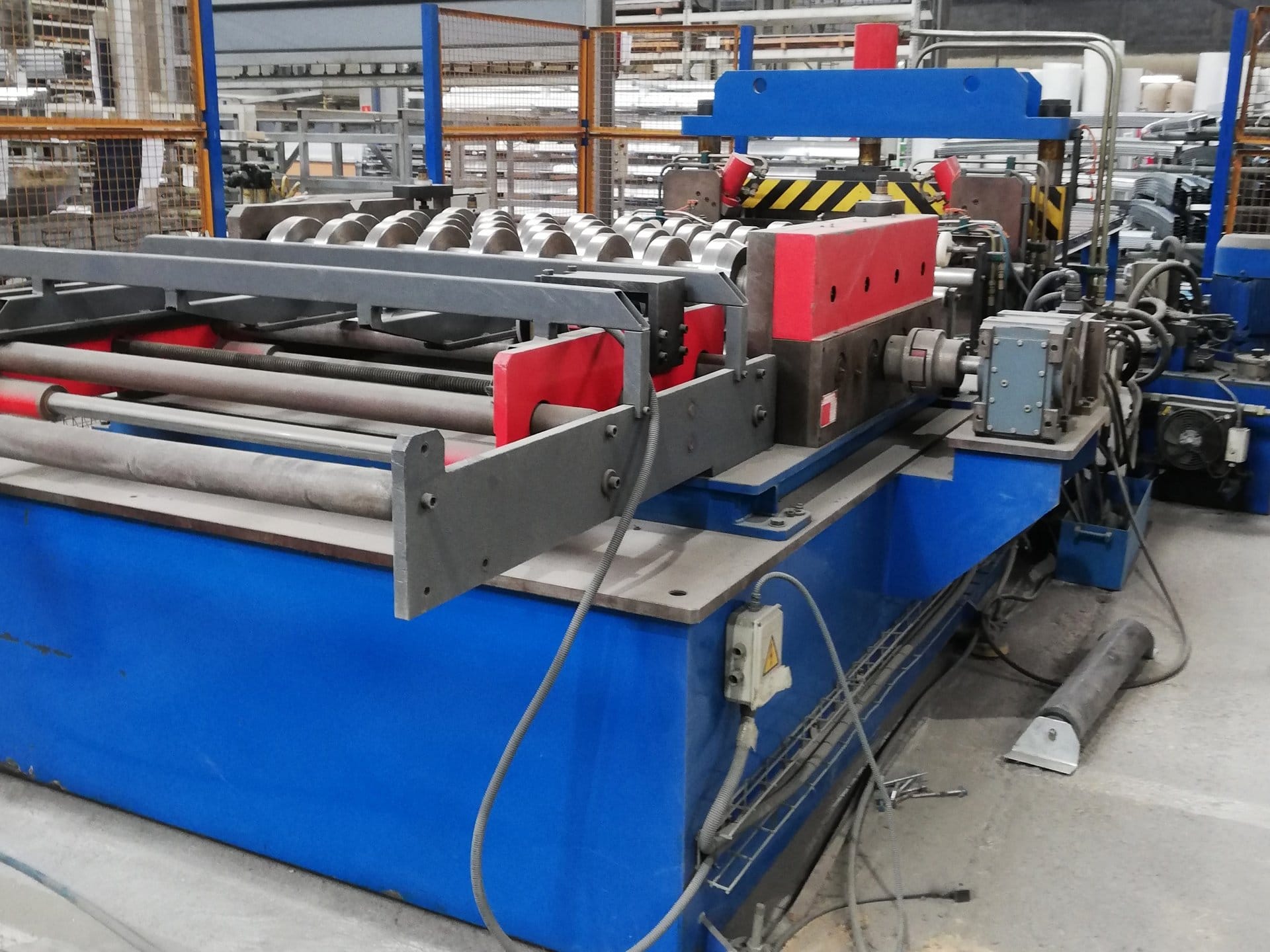

Sheet forming line Diper Design DEVANADORA D5-EH-V35 was produced in 2004 by the Spanish company Diper Design. The machine is designed for profiling metal sheets with a maximum width of 1250 mm. The mandrel diameters (closed / open) are 450 and 550 mm, respectively, and the roller diameter is 1500 mm. The profiling line operates at a bending speed of 35 m/min. Roof flashings were produced on the machine. With the use of an appropriate matrix, the machine can produce, for example, gutters, metal shelves, window sills, profiles, etc. The total weight of the sheet forming line is 5 tons. The machine is fully operational and ready to work. Technical specification of Diper Design DEVANADORA D5-EH-V35 sheet forming line – bending speed: 35 m/min – maximum sheet width: 1250 mm – roll diameter: 1500 mm – spindle diameter (closed): 450 mm – spindle diameter (open): 550 mm – maximum permitted diameter of a metal coil: 1500 mm – maximum permitted weight of a metal coil: 5000 kg – maximum permissible plate width: 1250 mm – total weight: 5000 kg – operating voltage: 380V 50Hz
