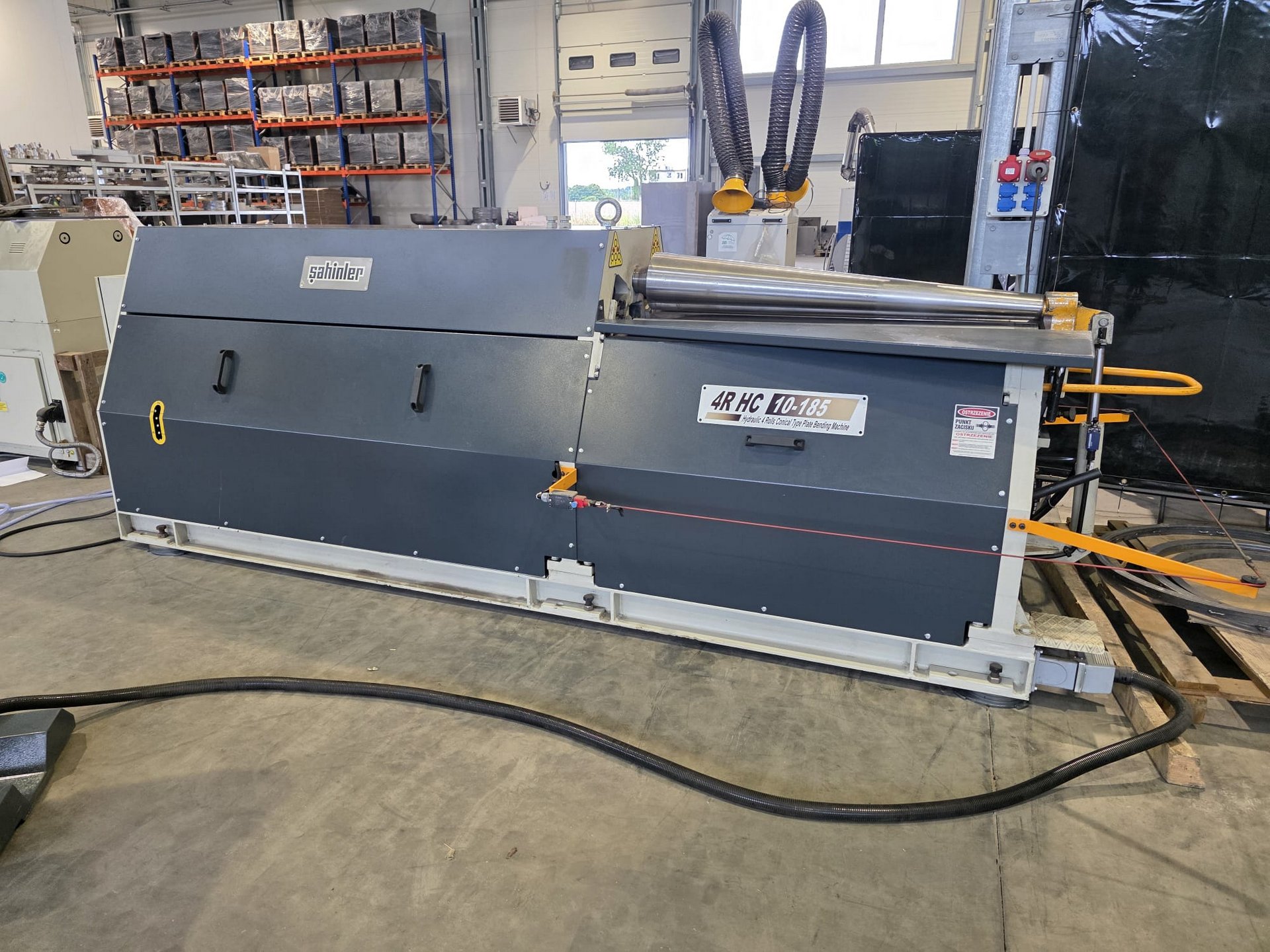

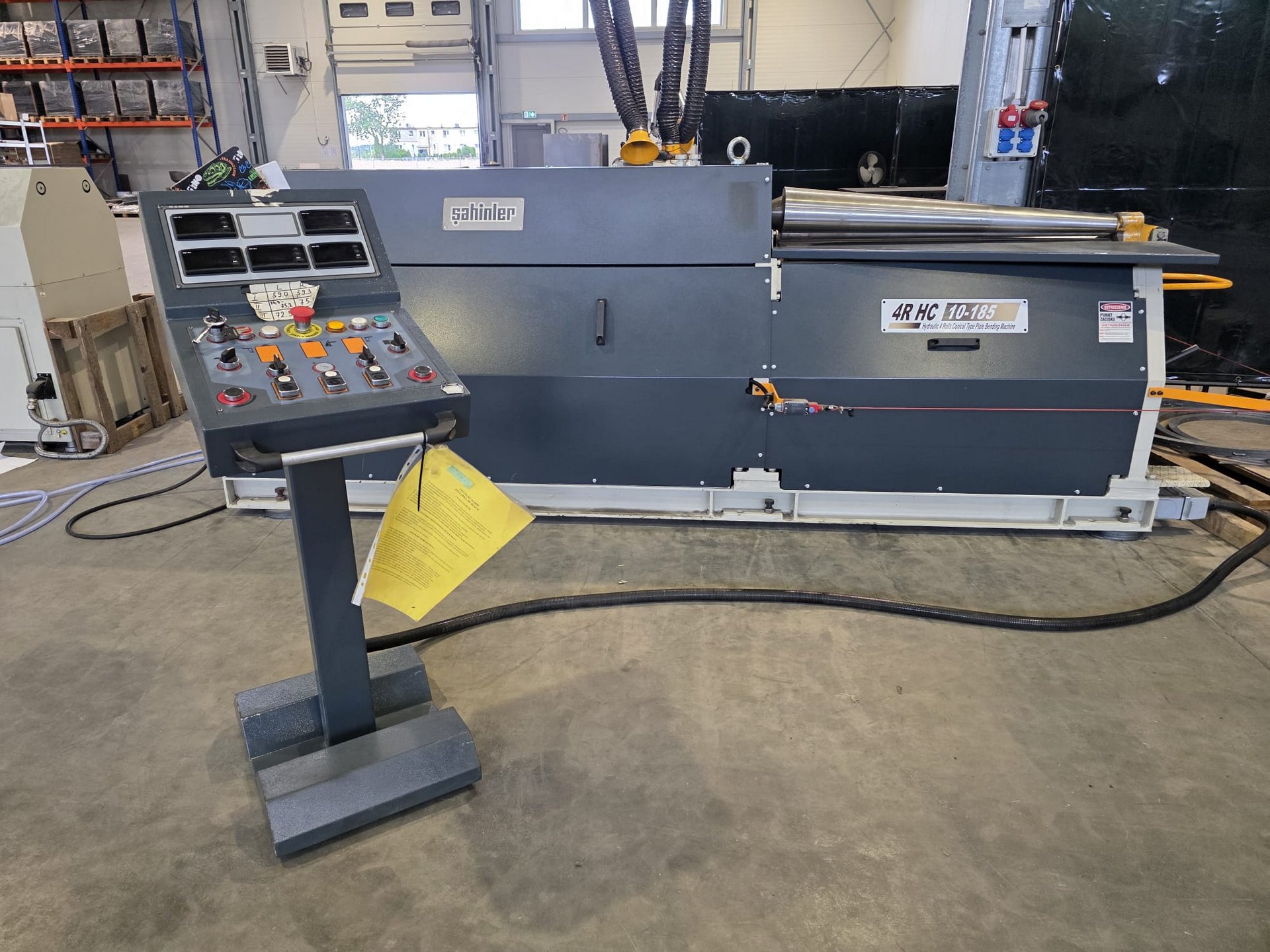

SAHINLER 4R HC 10-185 4-roll plate rolling machine

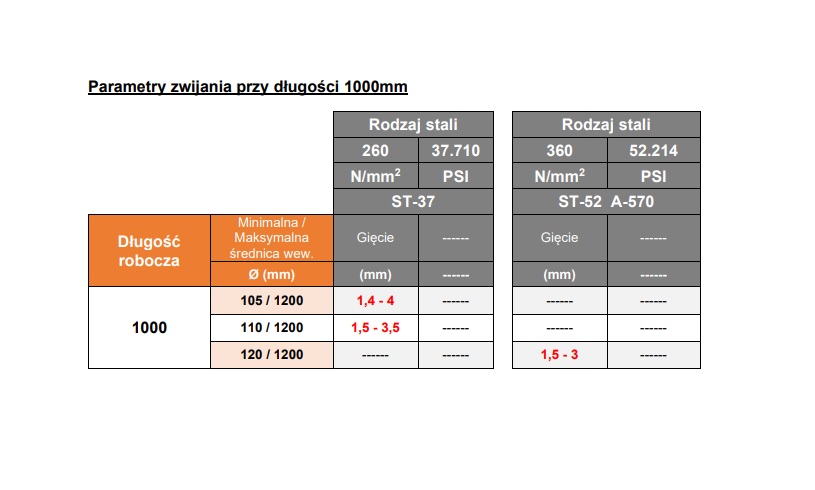

SAHINLER 4R HC 10-185 4-roll plate rolling machine was built in 2021 in Turkey by Şahinler Metal Makina Endüstri A.Ş. The machine, distinguished by its high precision and efficiency, is designed to roll conical forms from sheet metal with a maximum thickness of 4 mm. The machining process is performed by four induction-hardened rollers with their own drive, in the form of planetary gears and reliable hydraulic motors. To ensure uninterrupted, long-term operation, each of the four rollers has been subjected to prior heat treatment and resistance tests. This solution, combined with the stable construction made of high-quality steel, guarantees the achievement of high repeatability of the manufactured parts. The 4R HC 10-185 plate bending machine weigh 2545 kg. Technical data of the SAHINLER 4R HC 10-185 plate rolling machine number of rollers: 4 rollers working length: 1050 mm side rollers diameter: 185 mm middle rollers diameter: 70 mm maximum sheet metal thickness (steel ST-37, Rm=260 N/mm2): 4 mm maximum sheet metal thickness (steel ST-52, Rm=360 N/mm2): 3 mm maximum sheet metal length: 1000 mm working speed: 5 m/min total power: 5.5 kW power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 3640 x 1150 x 1200 mm weight of the SAHINLER 4R HC 10-185 machine: 2545 kg Equipment of the SAHINLER plate bending machine induction hardened, driven rollers hydraulic cassette for ejecting the finished workpiece mobile control panel electrical components: SIEMENS overload protection planetary reducer: BREVINI
