STANKOIMPORT IB 2222 V4 16X2000 Plate bending machine

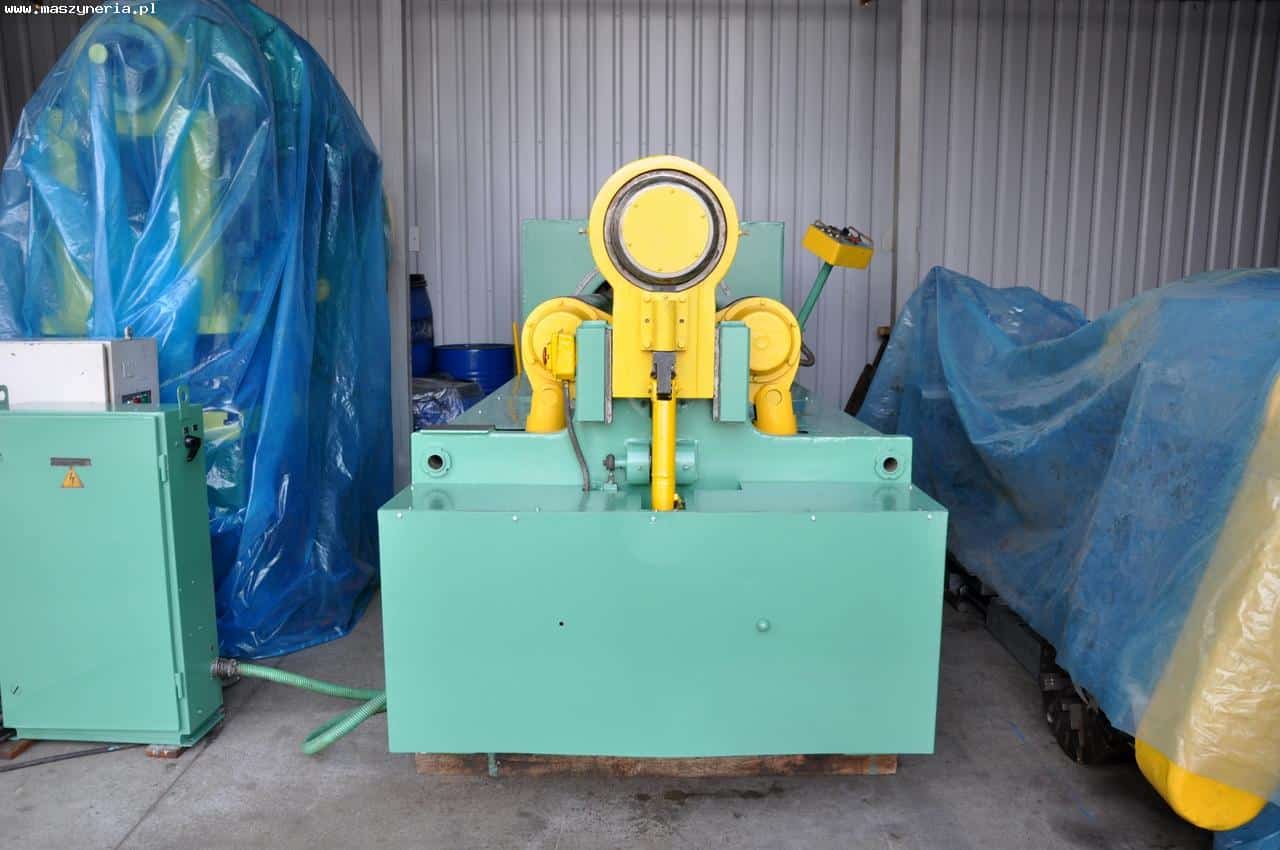

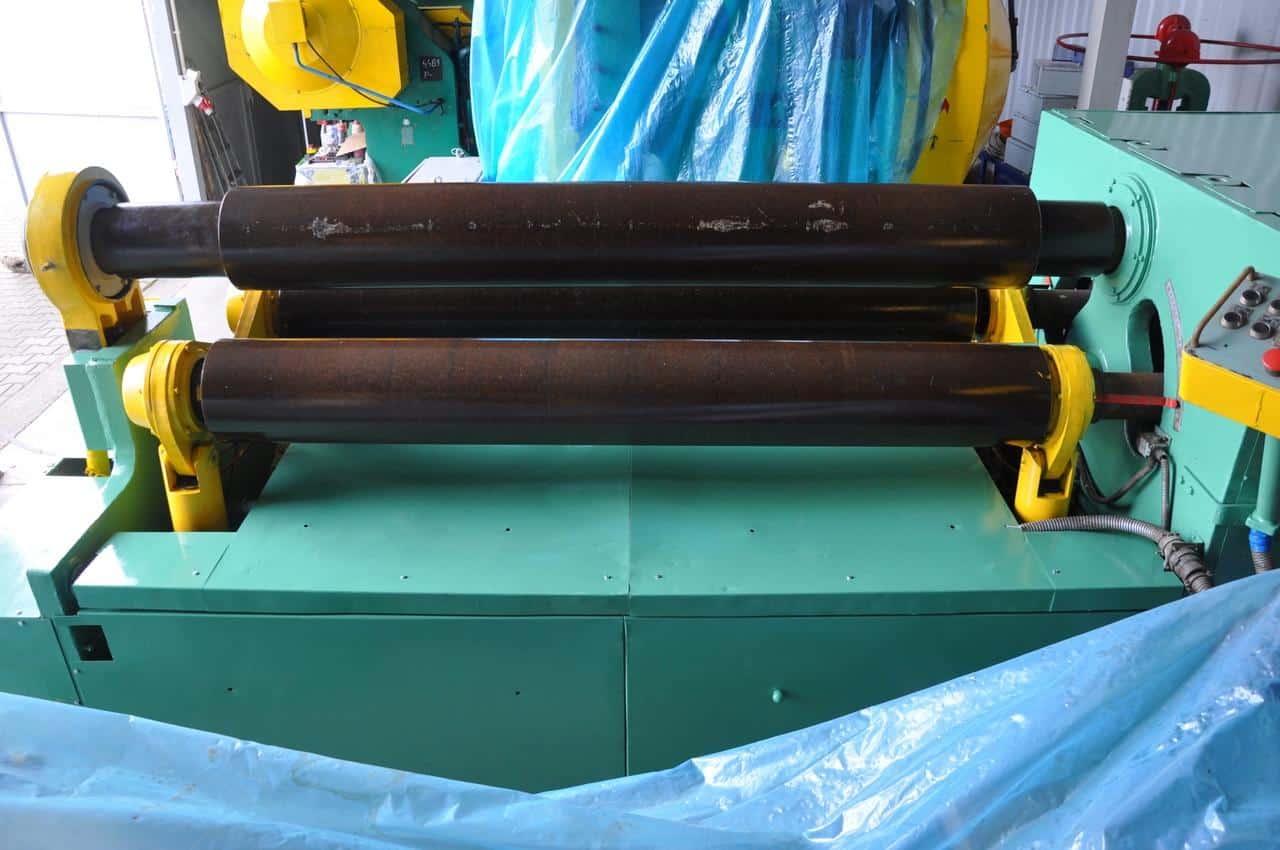

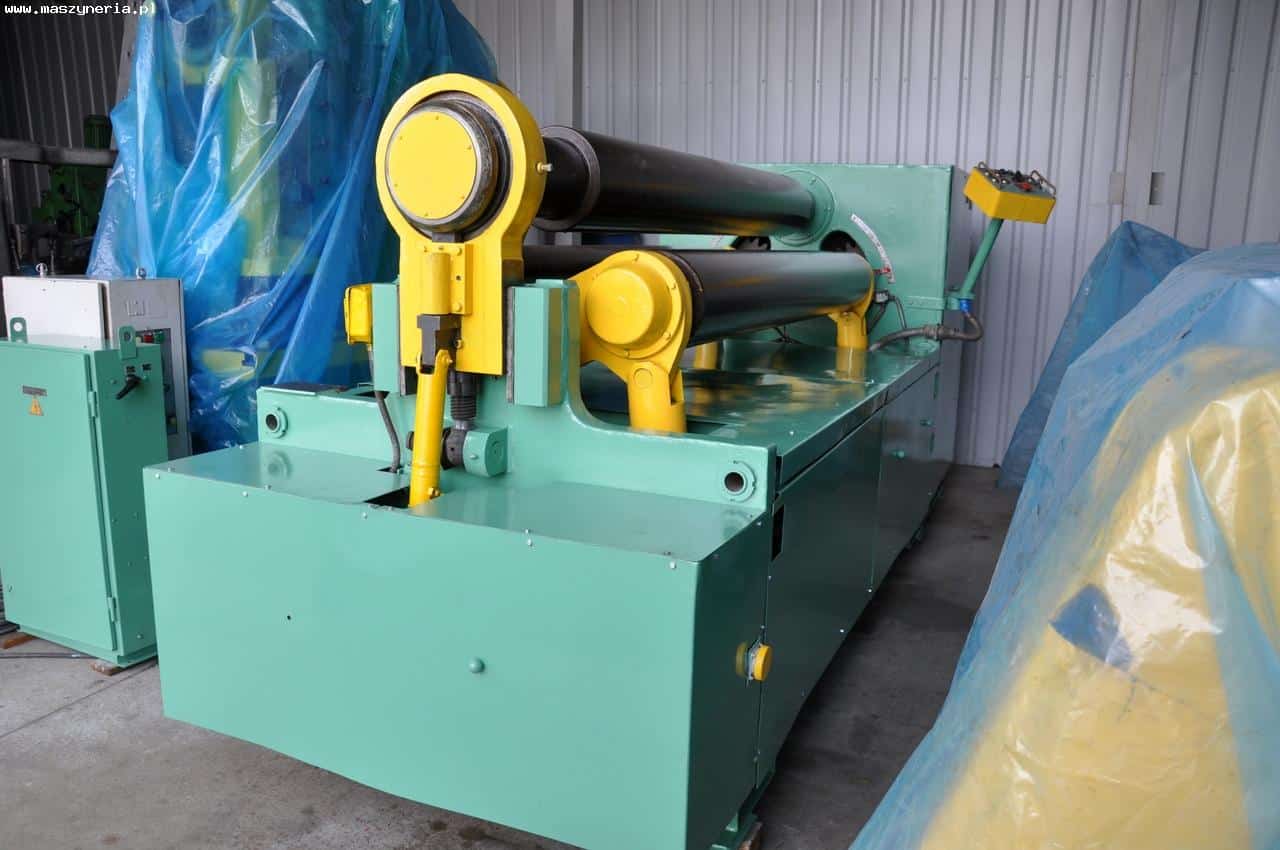

3-roll STANKOIMPORT IB 2222 V4 16X2000 Plate bending machine was built in the USSR in 1984. The three-roll sheet metal rolling mill has a mechanical drive, the upper roll yoke is also opened by a mechanical gear. Technical data of the STANKOIMPORT IB 2222 Plate bending machine – sheet width: 2000 mm – thickness of the rolled sheet when bending: 16 mm – rolled sheet thickness when bending: 12 mm – upper roll diameter: 270 mm – diameter of the lower rolls: 260 mm – the smallest bending radius: 240 mm (minimum diameter of the coiled coil: 480 mm) – bending speed: 7.7 m / min. – upper roll diameter: 270 mm – diameter of the upper roll shank, which enters the yoke: ~ 295 mm – overall dimensions (length x width x height): 4040 x 2020 x 1745 mm – weight: machine weight (without electrical cabinet): 9800 kg – DTR – technical and operational documentation in Polish and Russian STANKOIMPORT IB 2222 Plate bending machine are designed for cold bending of rolled and conical ring segments made of sheet metal with a yield point of T = 250 MPa (25 kG / mm2).
