NANTONG SHENGLI HEAVY MACHINE MANUFACTURING W12-25X3000 plate rolling machine

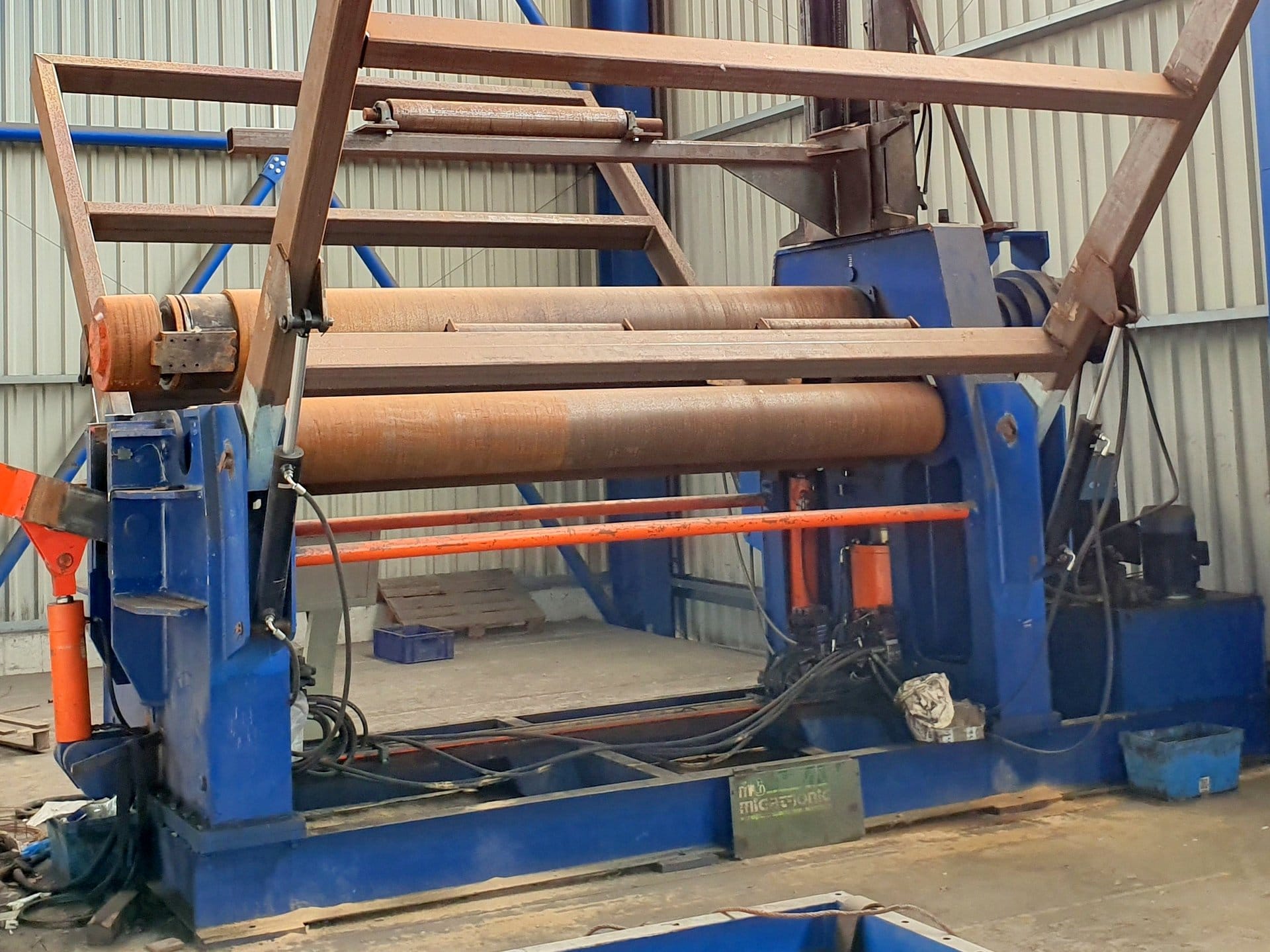

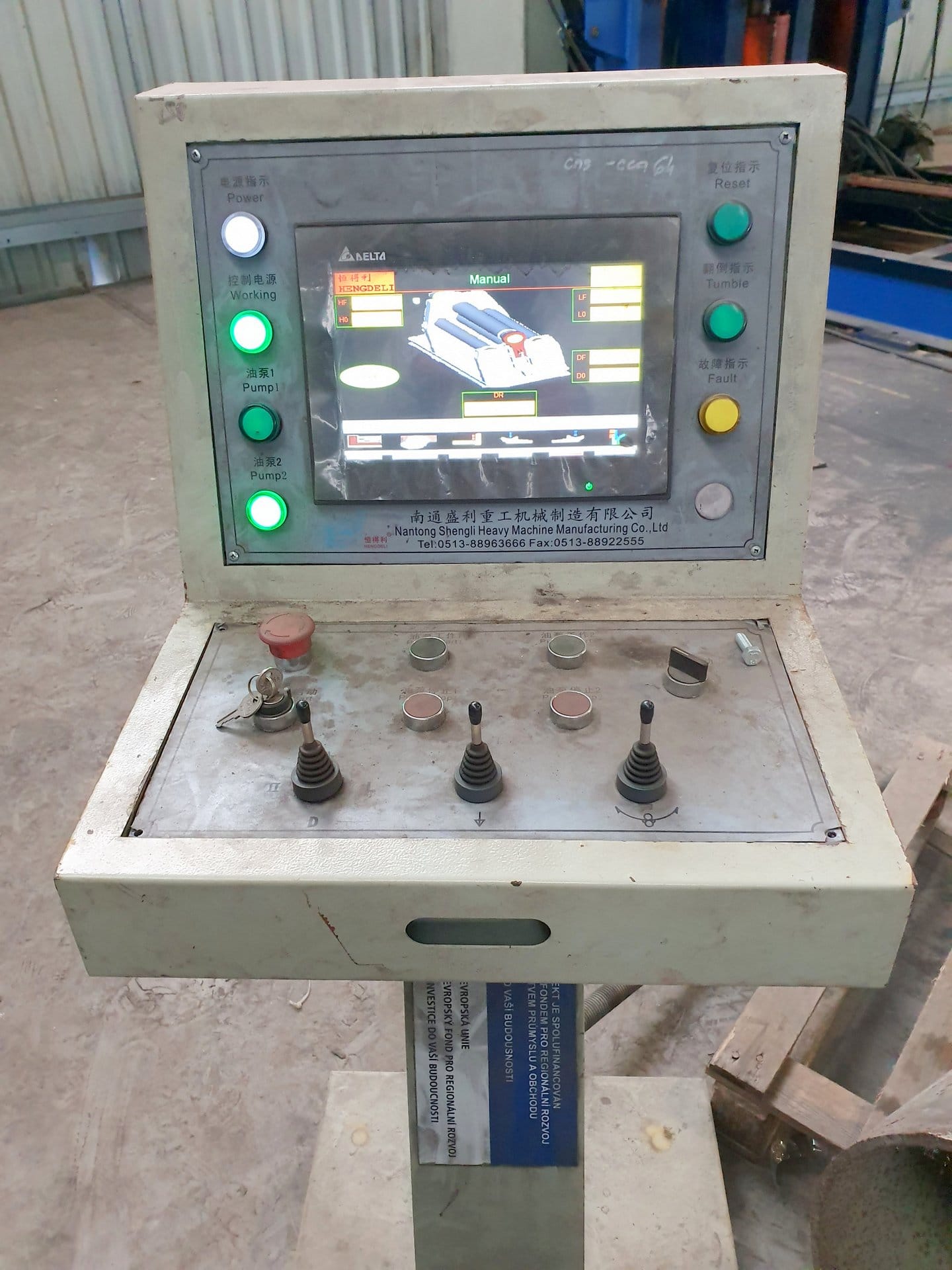

NANTONG SHENGLI HEAVY MACHINE MANUFACTURING W12-25X3000 plate rolling machine was manufactured in 2015 by Chinese manufacturer Nantong Shengli Heavy Machine Manufacturing Co., Ltd. The plate rolling machine has 4 rolls driven by a hydraulic motor with a diameter of 430 mm (upper roll), 390 mm (lower roll) and 330 mm (side rolls). The 4-roll NANTONG SHENGLI HEAVY MACHINE MANUFACTURING W12-25X3000 rolling machine allows rolling sheet metal with a maximum length of 3000 mm and a thickness of 25 mm at a working speed of 8 m/min. The axes of the large plate rolling machine are controlled by an NC controller with a touch screen. The plate rolling machine have worked a small amount of time. The total weight of the machine is approx. 23 tonnes. Technical parameters of the Nantong Shengli Heavy Industry W12-25×3000 plate rolling machine NC control maximum length of the rolled metal sheet: 3000 mm maximum thickness of the rolled metal sheet: 25 mm hydraulic drives diameter of upper roll: 430 mm diameter of lower roll: 390 mm diameter of side rolls: 330 mm working speed: 8 m/min display with touch screen motor power: 45 kW total weight: approx. 23 t
