VEB BLEMA GOTHA UBR 18X2000/1-10xW sheet metal levelling machine

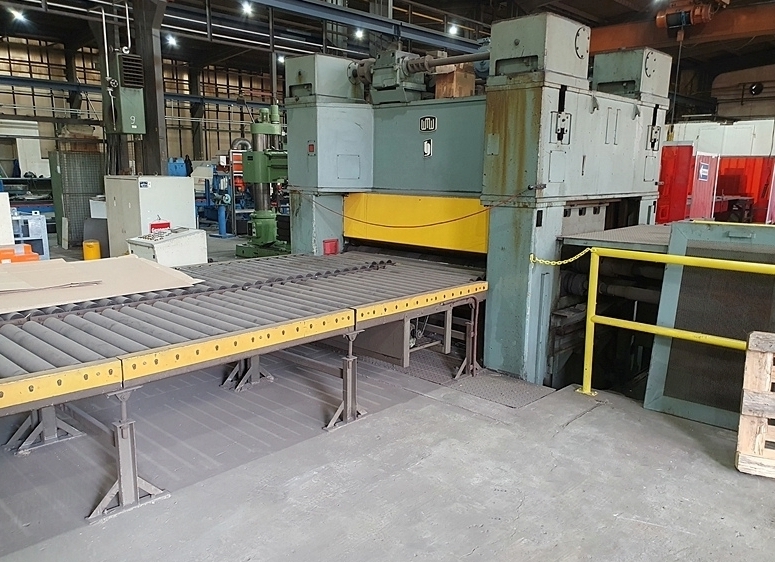

VEB BLEMA GOTHA UBR 18X2000/1-10xW sheet metal levelling machine was produced in 1973 in GDR by VEB Kombinat Umformtechnik. This highly efficient machine is an indispensable tool in many industries, such as the automotive and aerospace industry. It allows sheets with a maximum thickness of 20 mm to be precisely leveled to obtain perfectly straight sheets with low, evenly distributed stresses. The material prepared in this way creates the best conditions for increased productivity and quality in subsequent machining processes, i.e. cutting or welding. The UBR 18×2000 sheet metal levelling machine weighs approximately 23500 kg. Technical specifications of the VEB BLEMA GOTHA UBR 18X2000/1-10xW sheet metal leveler maximum sheet metal length: 2000 mm maximum sheet metal thickness: depending on steel hardness – steel 23 kp/mm2: 20 mm – steel 25 kp/mm2: 19 mm – steel 28 kp/mm2: 18 mm – steel 34 kp/mm2: 16 mm – steel 38 kp/mm2: 15 mm lower levelling rollers adjustment range: 24 mm (-4/ 20 mm) working speed: 10 m/min rated power: 76 kW main motor power: 2x 18.5 kW ambient temperature: -5/ 35°C relative humidity: 75% power supply: 3x 380 V; 50 Hz weight of the UBR 18×2000 machine: approx. 23500 kg
