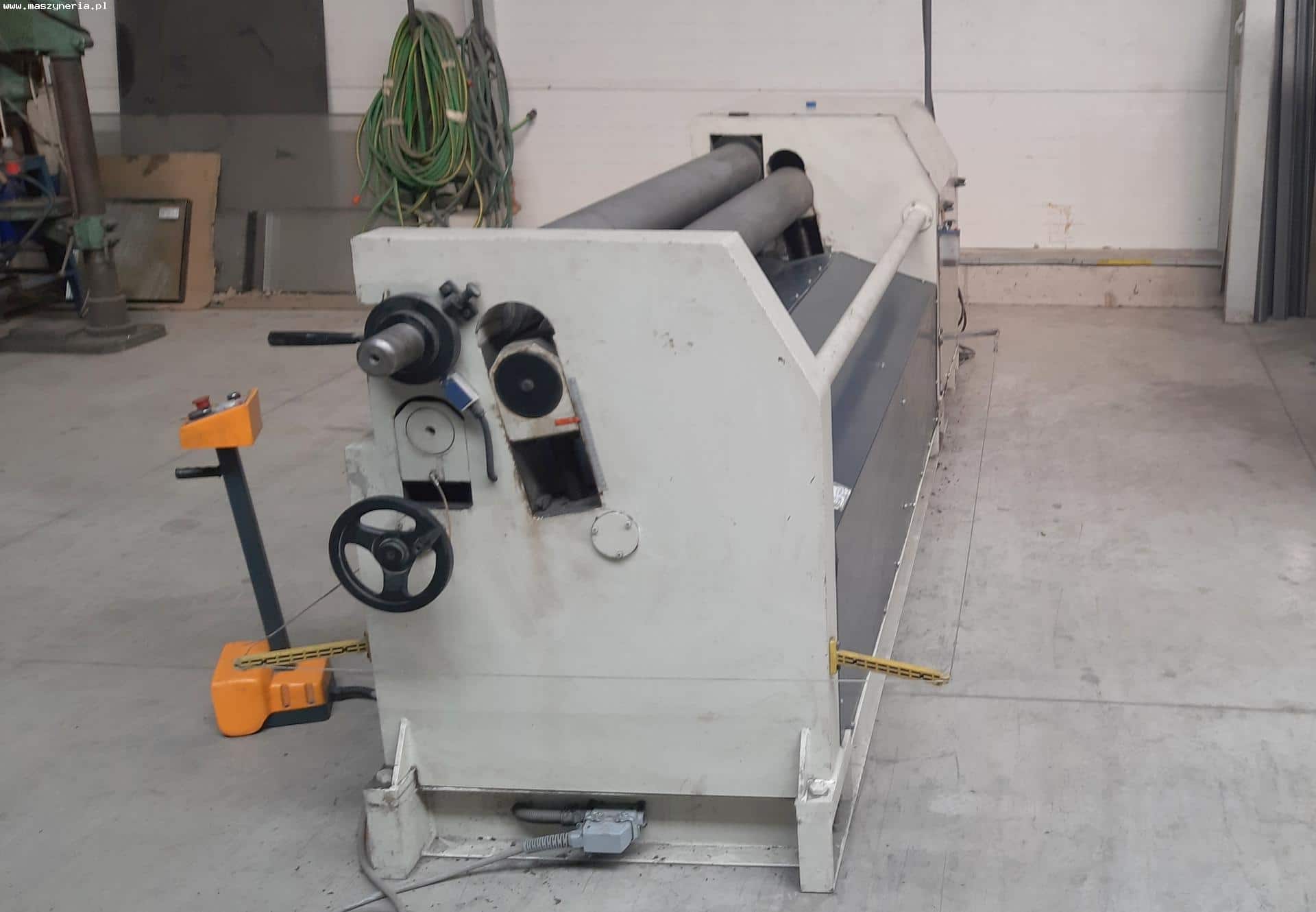

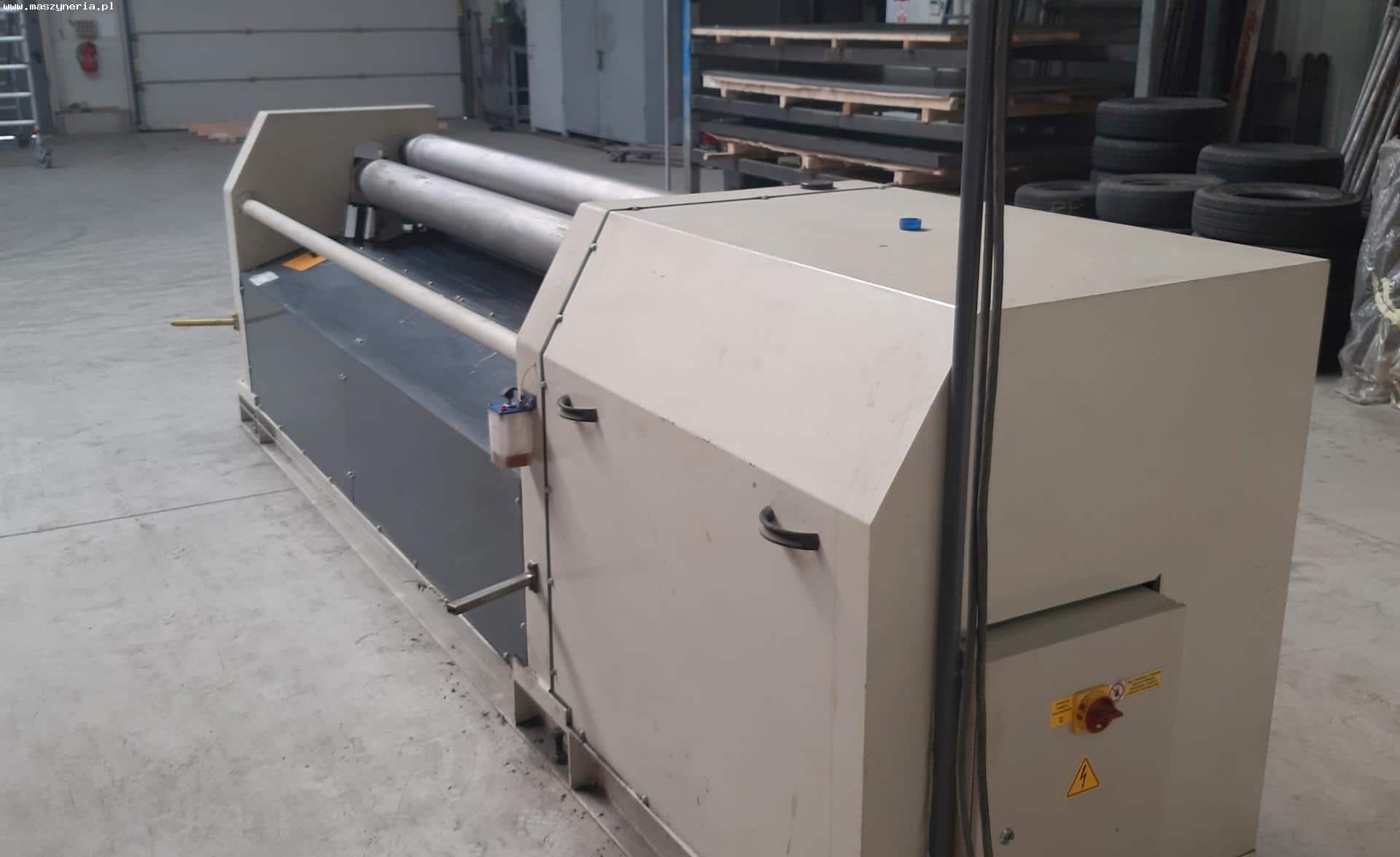

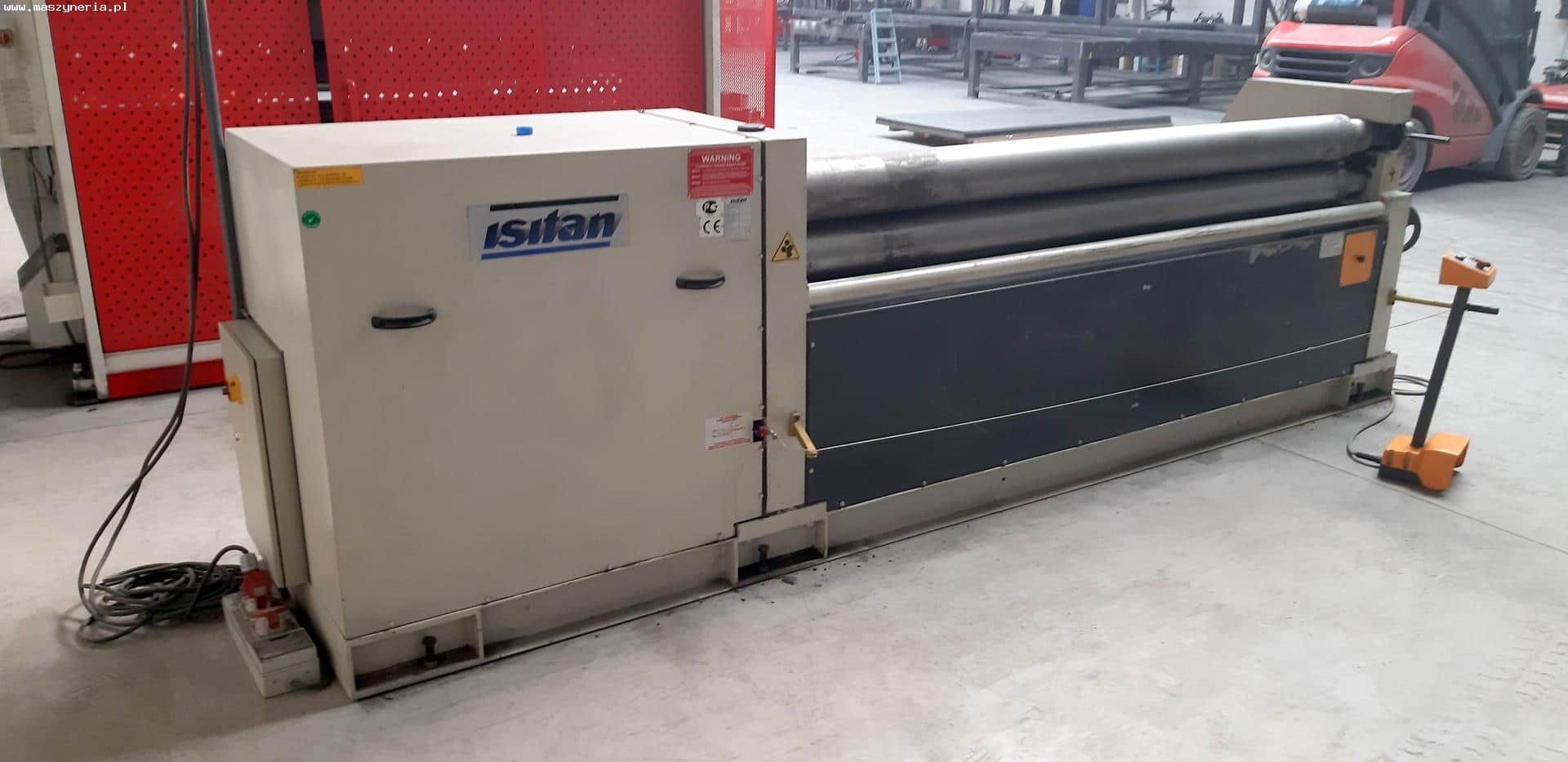

ISITAN MRM-S 25-180 Plate bending machine

The ISITAN MRM-S 25-180 Plate bending machine was built in 2014. The machine enables the rolling of sheet metal 2550 mm wide and with a maximum thickness of 5 mm (without bending). The upper roll diameter is 180 mm and the minimum winding diameter is 270 mm. The rolling mill is equipped, among others, with an electromechanical drive, certified steel rollers and a mobile control panel. Technical parameters of the ISITAN MRM-S 25-180 Plate bending machine – rollers: 3-roller – working width: 2550 mm – upper roll diameter: 180 mm – rough rolling: 3 mm – thickness with bending: 4 mm – thickness without bending: 5 mm – minimum diameter of winding: 270 mm – main engine power: 4 kW – reverse engine power: 1.5 kW – dimensions of the machine (length x width x height): 4150 x 950 x 1300 mm – machine weight: 3050 kg Advantages of the ISITAN MRM-S 25-180 Plate bending machine – certified steel rollers – motorized roller return – two driven rollers – mobile control panel – the possibility of making cones – central lubrication system – precise rolling thanks to the brake – stable, steel construction – construction compliant with EC directives and CE certificate
