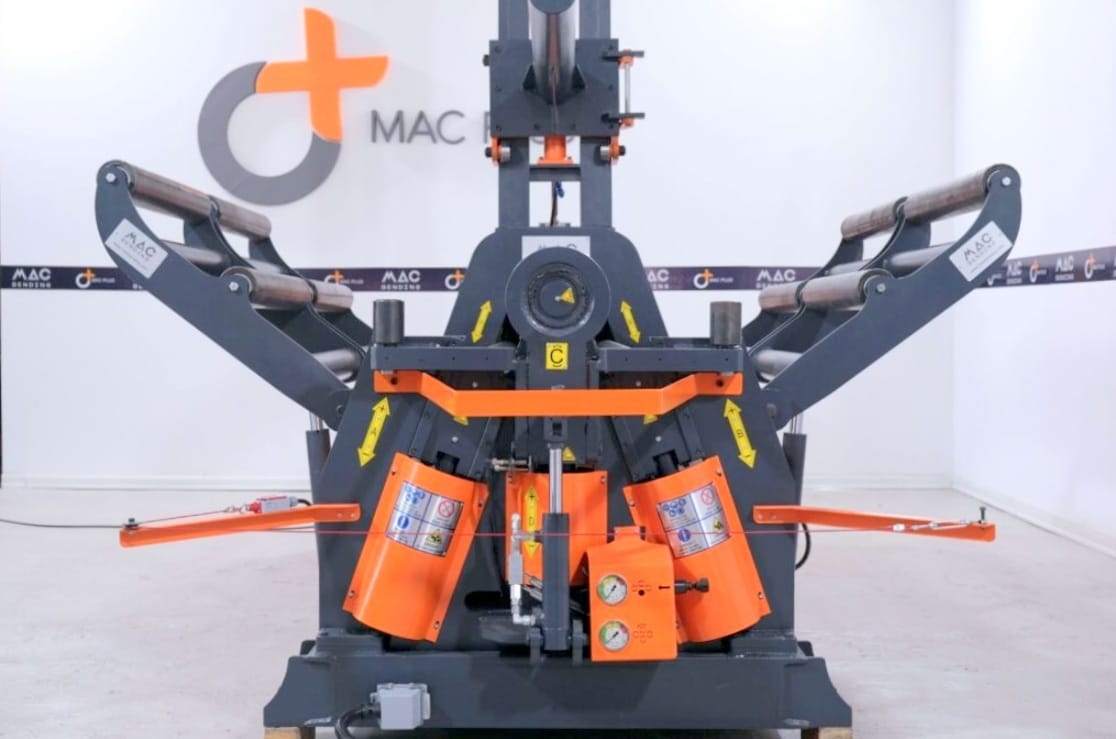

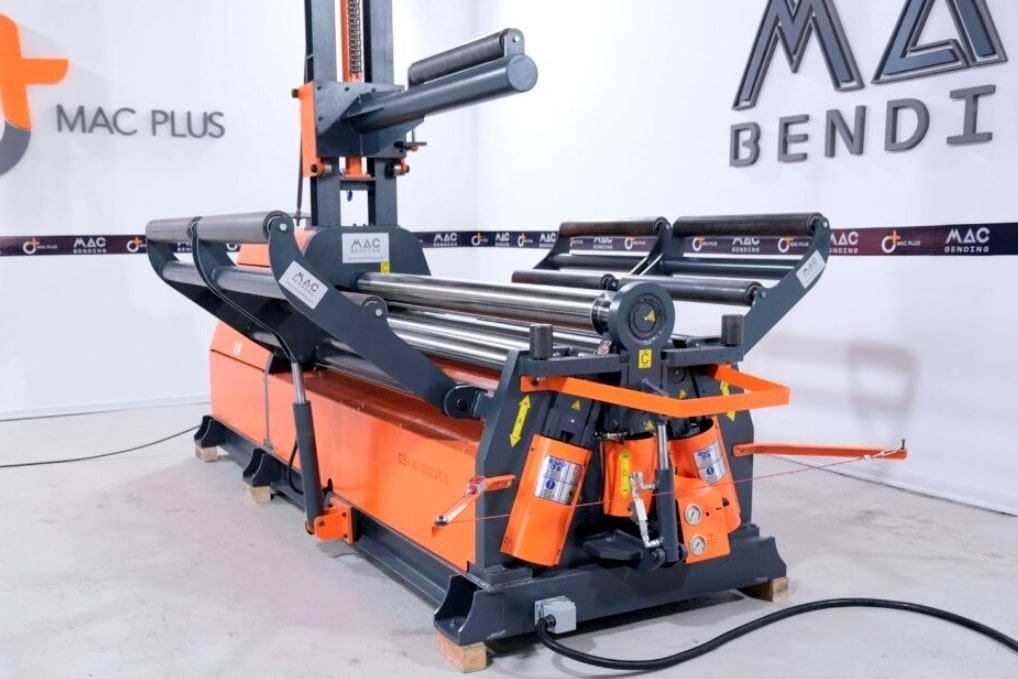

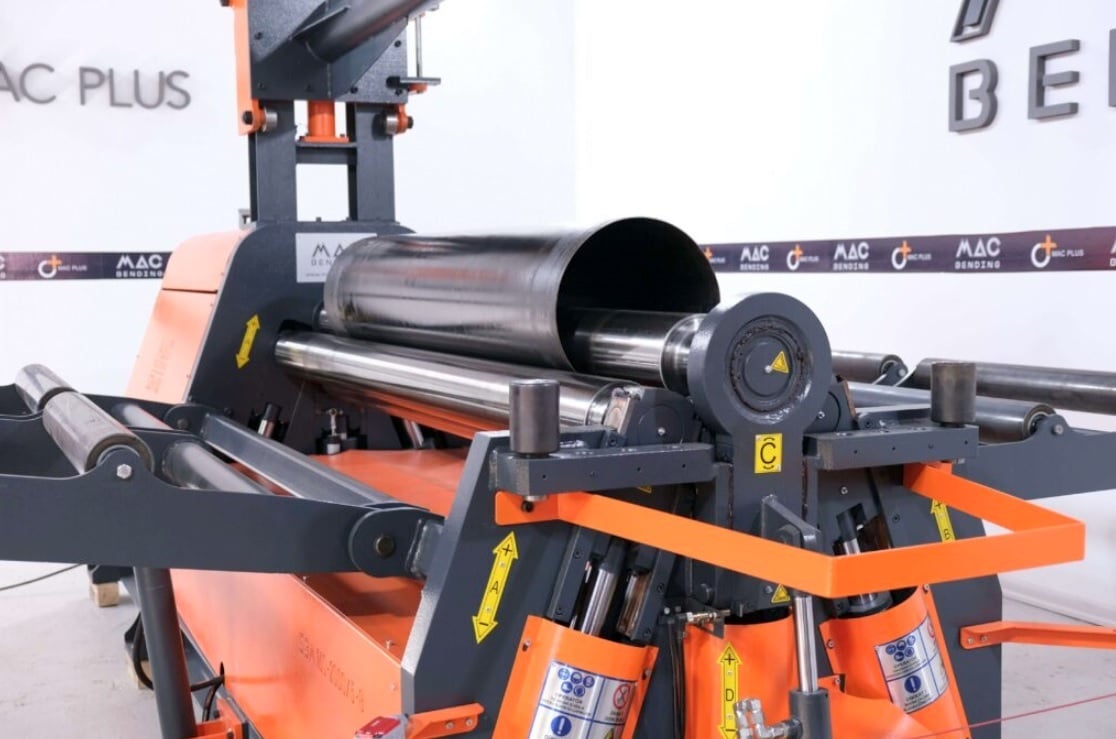

MAC BENDING SBM 160X2100 plate rolling machine

MAC BENDING SBM 160X2100 plate rolling machine was built in Turkey by Mac Bending Dış Ticaret A.Ş. The machine is brand new, post-show and covered by the manufacturer’s warranty. This extremely efficient machine is designed for even the most intensive sheet metal machining. The sturdy design combined with reliable components offers excellent precision and repeatability of the produced parts. The NC control installed on the mobile operator panel makes the machine significantly easier to use, as advanced machining programmes can be programmed in just a few steps. All four rollers are driven by a reliable high-torque system comprising hydraulic motors and planetary gears. The drive, which is set on the same axis as the rollers, ensures that all power is transferred to the sheet metal without any loss of productivity, making it possible to bend batches of material with fewer steps. The electronic PLC balancing system further prevents deviations in the position of the rollers relative to each other, ensuring that they are guided parallel. The independent inclination of the bottom roller and the side rollers also makes the SBM 160X2100 plate rolling machine the ideal solution for precise rolling of cones. The side rollers are connected to the machine body by hydraulic pistons that move up and down in a straight line. The MAC BENDING 4-roll plate rolling machine weighs 4000 kg. Technical specifications of MAC BENDING SBM 160X2100 hydraulic plate rolling machine number of rollers: 4 maximum workpiece thickness (coiling, Rm=42kg/mm2): 6 mm maximum workpiece thickness (bending, Rm=42kg/mm2): 4 mm rollers working length: 2100 mm upper roller diameter: 160 mm bottom roller diameter: 160 mm side rollers diameter: 140 mm cone rolling ability number of operating speeds: 3 installed power: 4 kW dimensions (L x W x H): 3600 x 1200 x 1300 mm weight of the MAC BENDING SBM 160X2100 machine: 4000 kg Equipment of the SBM 160 X 2100 plate rolling machine operator panel with NC control PLC control hydraulic and electronic PLC balancing system to ensure parallel guidance of the rollers driven, hardened and polished rollers roller press force adjustment automatic speed compensation of the driven rolls proximity sensors and emergency stop cable around the machine upper roller lifting for easy removal of the finished product linear hydraulic lifting of side rollers hydraulically opened roller end two side supports and central support electrical and hydraulic overload protection manual lubrication audible and light warning system remote connection via internet CE certification
