BENDMAK CYL-ST 140-15/6.0 3-roll plate rolling machine

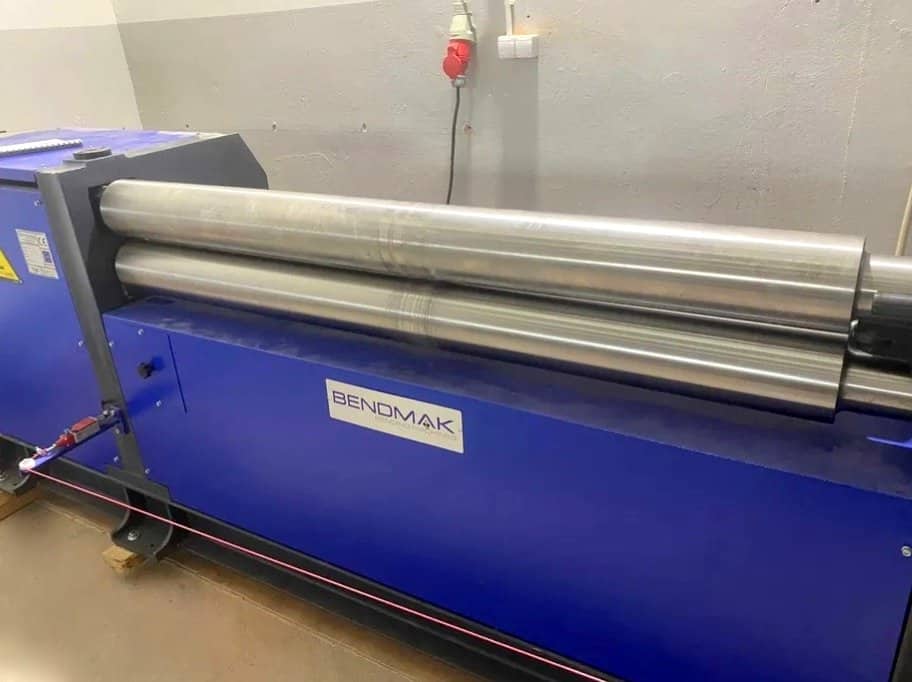

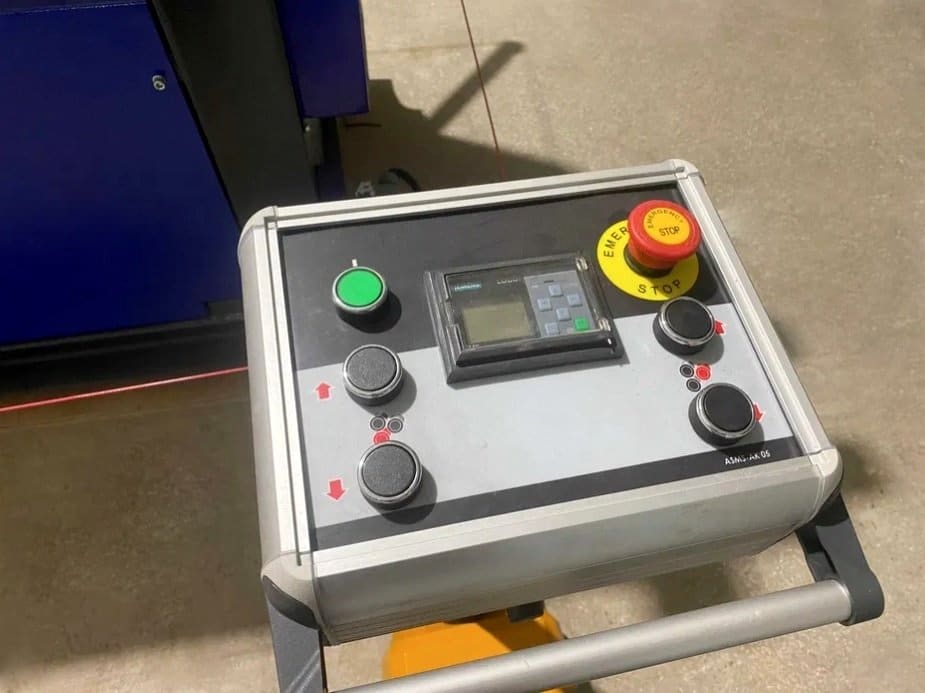

BENDMAK CYL-ST 140-15/6.0 3-roll plate rolling machine was manufactured in Turkey in 2022. The machine is used to bend sheet metal into the shape of circles and gutters and thanks to the asymmetrical arrangement of the rollers, also to roll cones and perform accurate sheet metal bending. The plate rolling machine processes workpieces made of stainless steel, mild steel or aluminium having a maximum thickness of 6 mm and a length of 1600 mm. The plate rolling machine is characterised by an extremely robust construction made of the best quality steel and three hardened rollers, each with a diameter of 140 mm, allowing to obtain the best bending quality. A portable control system with an installed SIEMENS LOGO! PLC controller and safety switch, allow for complete control of the machining process. The total weight of the machine is 1450 kg. Technical parameters of the BENDMAK CYL-ST 140-15/6.0 plate rolling machine PLC control: SIEMENS LOGO! number of rollers: 3 number of driven rollers: 1 diameter of upper roller: 140 mm diameter of lower roller: 140 mm diameter of side roller: 140 mm bent materials: stainless steel, mild steel, aluminium maximum workpiece length: 1600 mm maximum workpiece thickness: 6 mm bending speed: 6 m/min motor power: 4 kW power supply: 400 V; 50 Hz dimensions of the CYL-ST 140-15/6.0 machine (L x W x H): 3300 x 900 x 1060 mm total weight: 1450 kg
