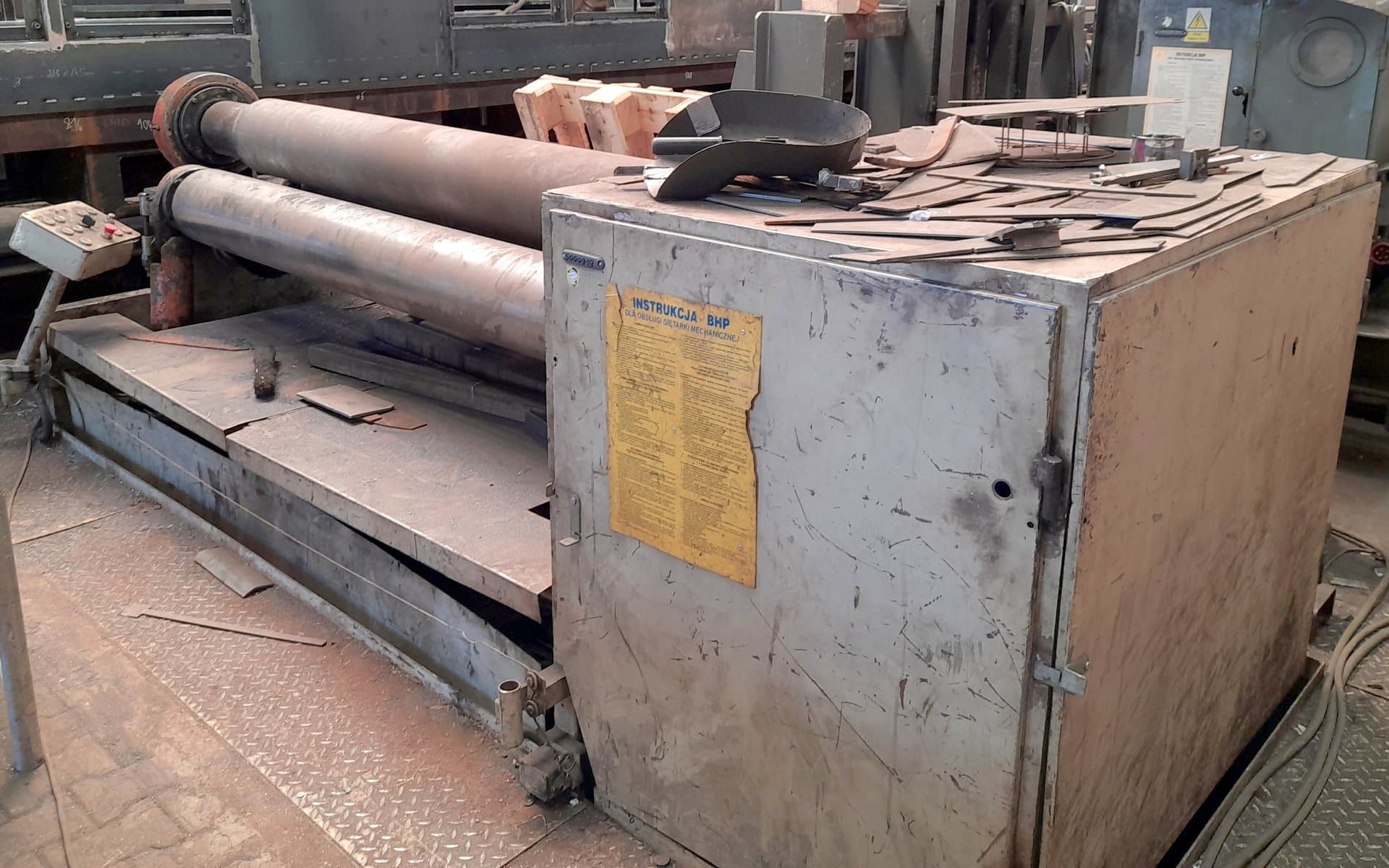

STANKOIMPORT IB 2222 16X2000 3-roll plate rolling machine

STANKOIMPORT IB 2222 16X2000 3-roll plate rolling machine was built in the USSR in 1986. The plate bending machine is designed for cold rolling of cylindrical and conical sheet metal parts having a yield strength of 250 MPa. The machine is equipped with three rollers – an upper roller with a diameter of 270 mm and two lower rollers with a diameter of 260 mm, allowing bending of workpieces with a maximum width of 2000 mm at a working speed of 7.5 m/min. The total weight of the plate rolling machine is approximately 7,500 kg. Technical specifications of the STANKOIMPORT IB 2222 16X2000 plate rolling machine number of mounted rollers: 3 pcs. diameter of upper roller: 270 mm diameter of lower rollers: 260 mm maximum thickness of rolled sheet at folding: 16 mm maximum thickness of rolled sheet at bending: 12 mm maximum width of rolled sheet: 2000 mm smallest rolling radius: 240 mm bending speed: 7.5 m/min number of electric motors: 6 pcs. power of main motor: 11 kW maximum speed of main motor: 895 rpm total installed power: 18.1 kW overall dimensions (L x W x H): 4040 x 1590 x 2095 mm total machine weight IB 2222: approx. 7.5 t
