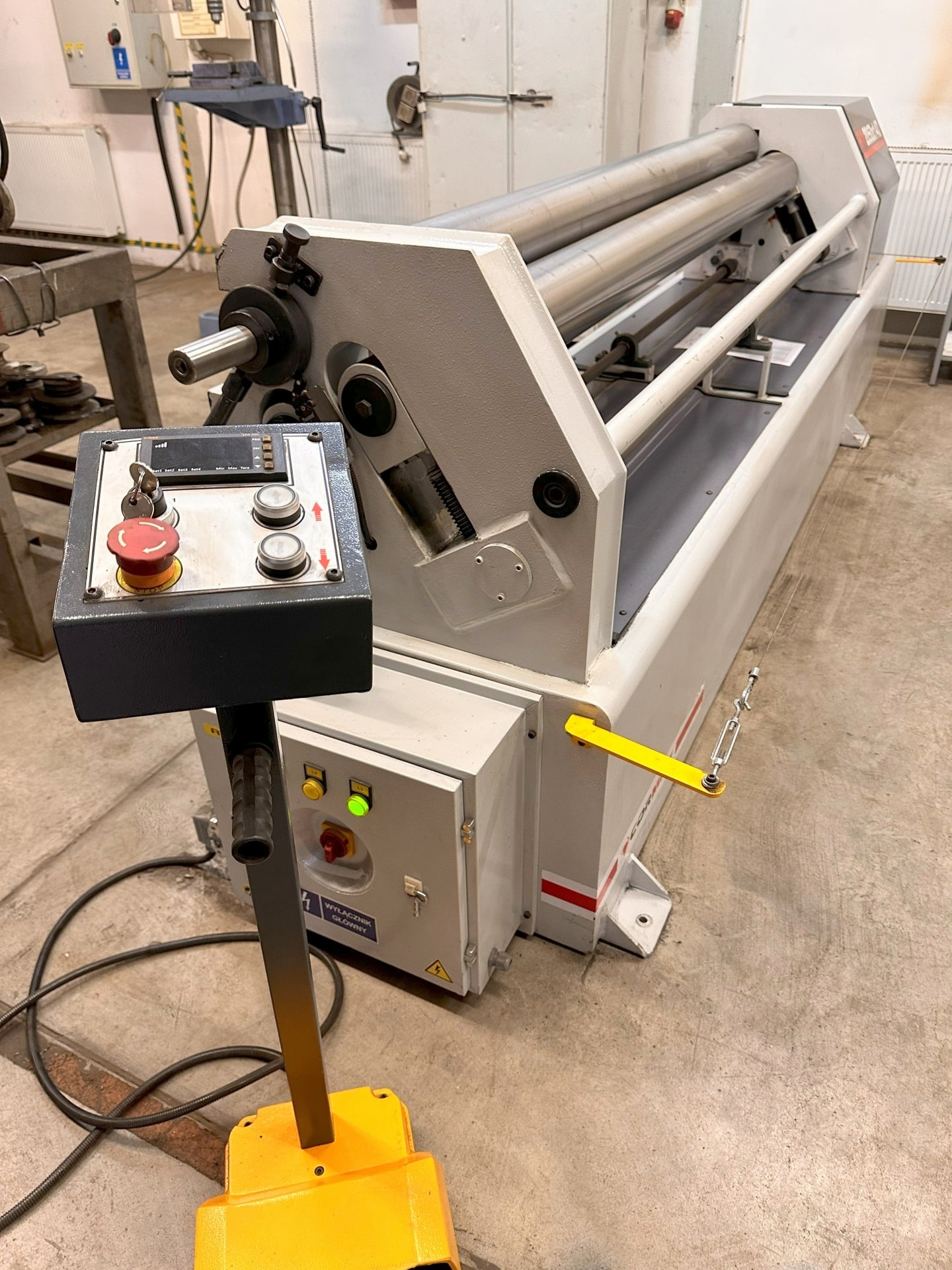

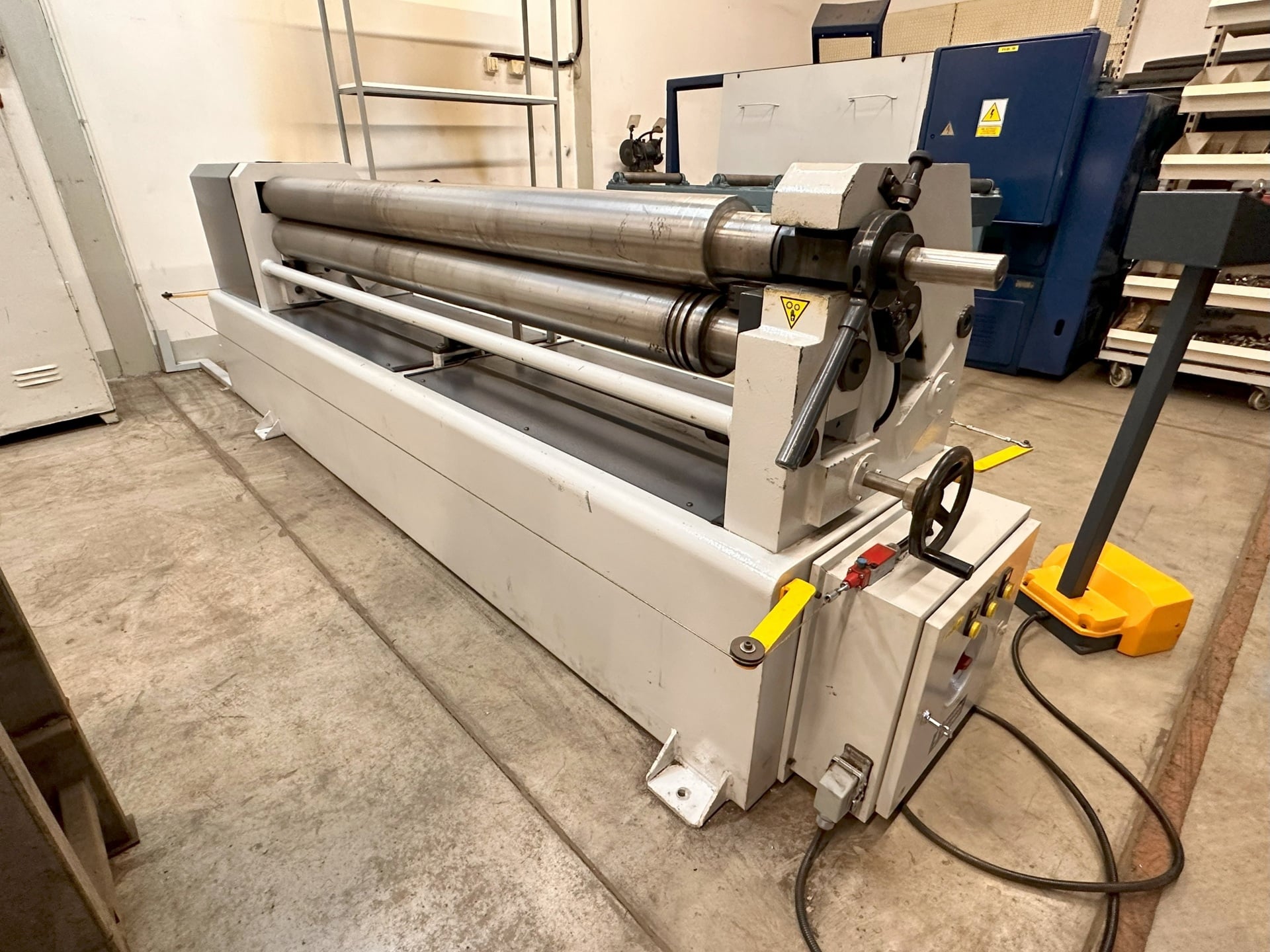

CORMAK RM 2050X140 plate rolling machine

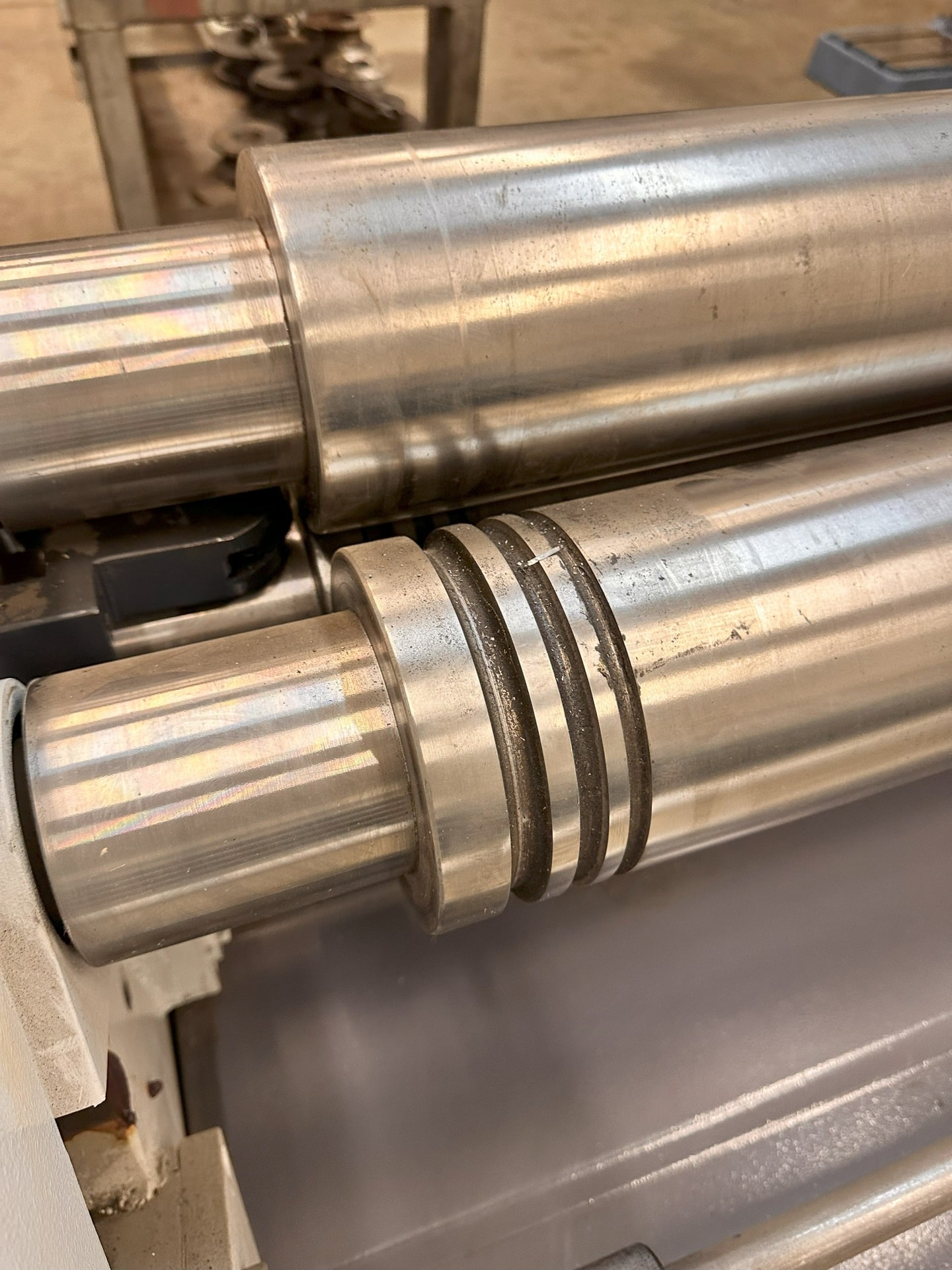

CORMAK RM 2050X140 plate rolling machine was built in 2021 by the Polish company CORMAK. The machine is used for precision rolling of cylindrical and conical forms, from sheet metal with a maximum thickness of 4 mm. The asymmetrical roller arrangement, which are made of the highest quality steel with increased tensile strength, is driven by an electric motor with reducer and chain. The bending radius of the sheet metal is given by moving the side rollers, while the top roller remains stationary. The RM-2050/140 plate rolling machine weighs approximately 1750 kg. Technical specifications of the CORMAK RM 2050X140 plate rolling machine number of rollers: 3 roller length: 2050 mm roller diameter: 140 mm maximum sheet thickness: 4 mm working speed: 3.5 m/min motor power: 2.2 0.75 kW power supply: 400 V; 50 Hz dimensions (L x W x H): 3230 x 800 x 1100 mm weight of the CORMAK RM 2050X140 machine: approx. 1750 kg
