10000/30 shipbuilding plate bending machine

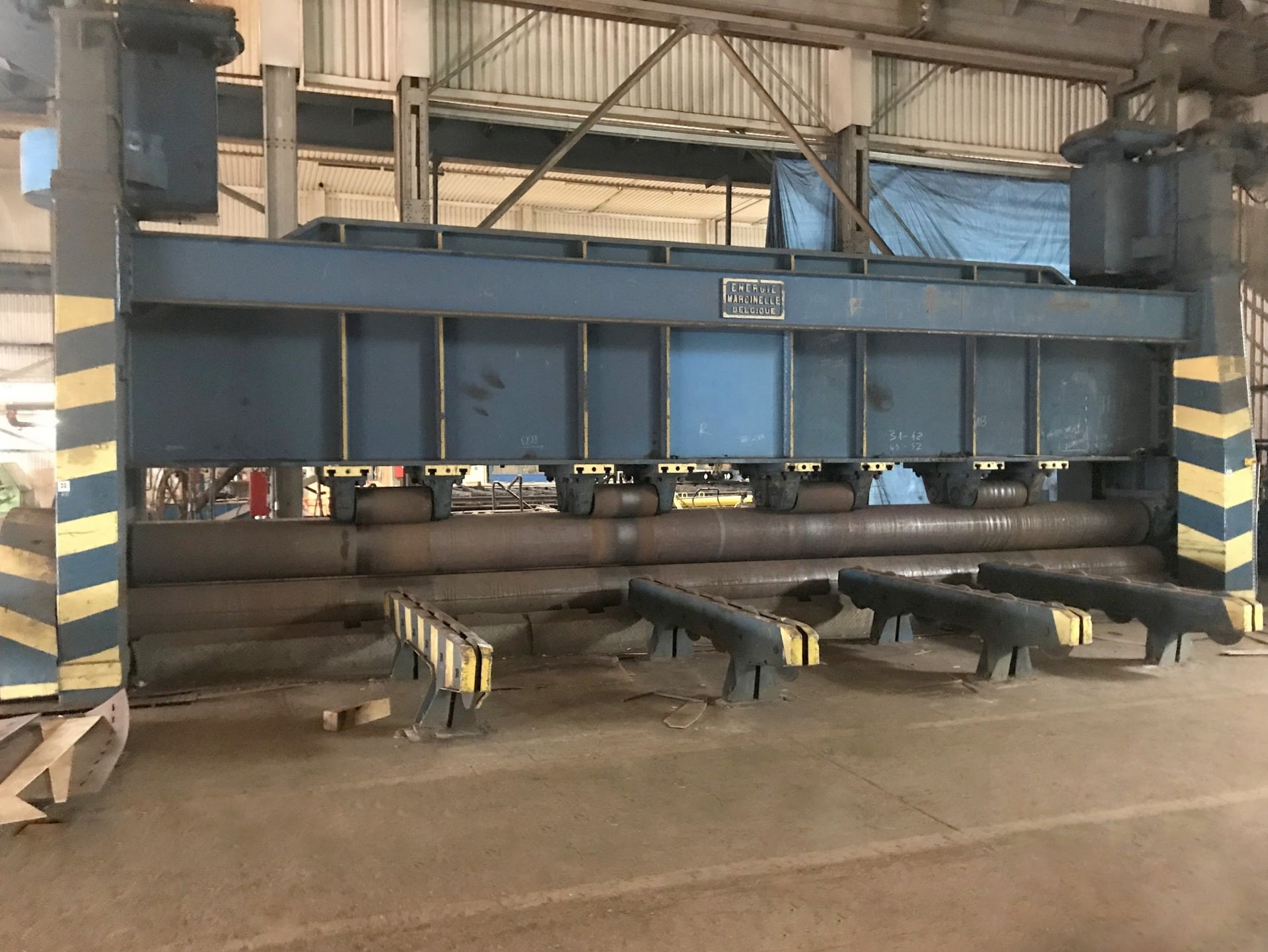

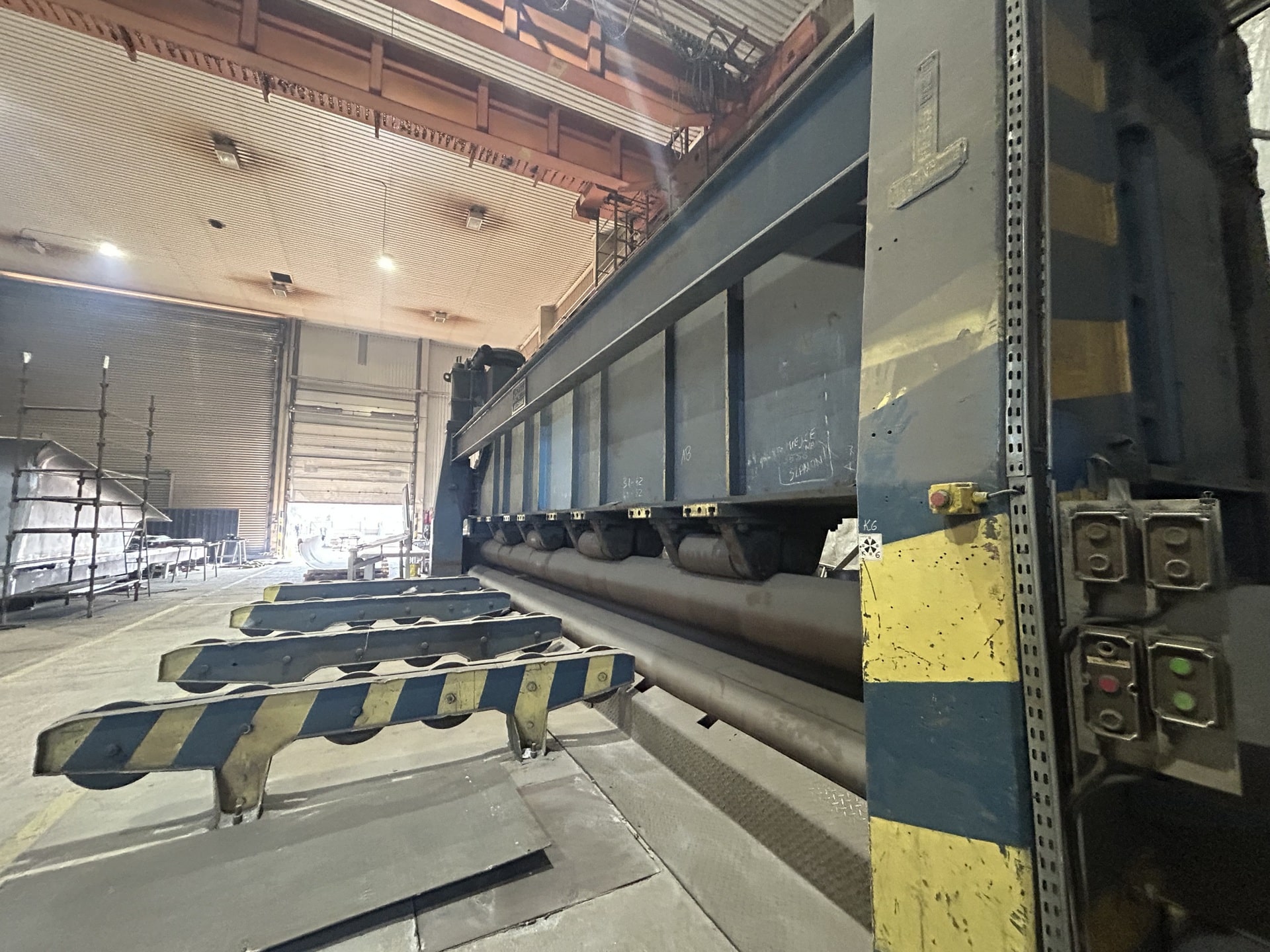

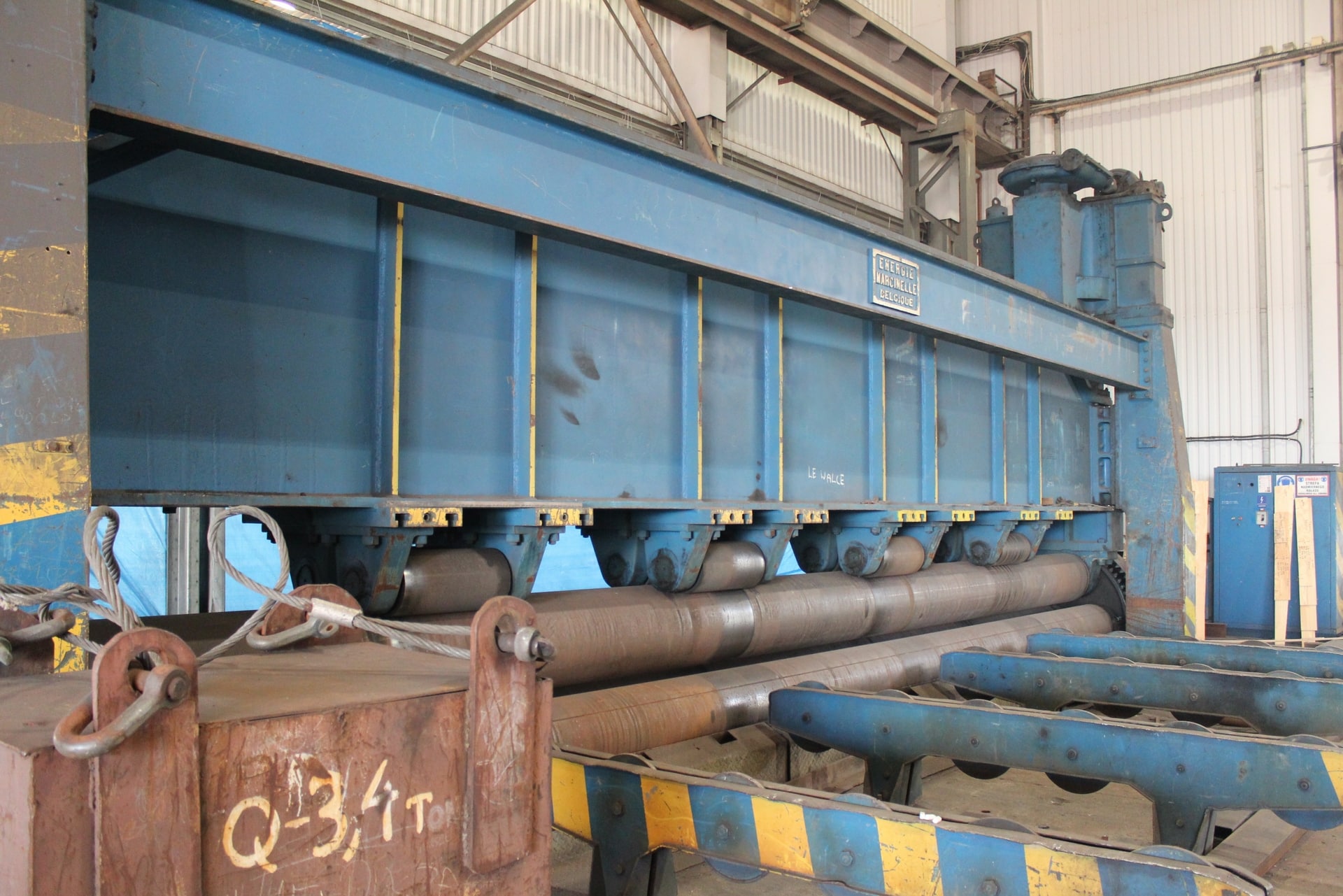

10000/30 shipbuilding plate bending machine is used in shipyards for precision machining of sheet metal with a maximum thickness of 30 mm. Shipbuilding/marine sheet metal is ideal for the manufacture of e.g. ship hulls and offshore platforms, due to its high tensile strength and weather resistance. Ship plate bending machine machine performs the machining process using three rollers. A sheet metal is fed between the upper roller and two lower rollers with their own drive. The pressure rollers above the upper roller exert pressure on the sheet, causing it to curve into the desired shape. The offered 10000/30 shipbuilding plate rolling machine, including the motors, weighs a total of 170 tonnes. Technical specifications of the 10000/30 shipyard plate rolling machine working length: 10 m maximum sheet metal thickness: 30 mm minimum sheet metal thickness: 6 mm number of rollers: 3 diameter of upper roller: 500 mm diameter of lower rollers: 460 mm diameter of pressure rollers: 290 mm length of pressure rollers: 940 mm space requirement (L x W): 15 x 3.5 m weight of the machine including motors: 170 t
